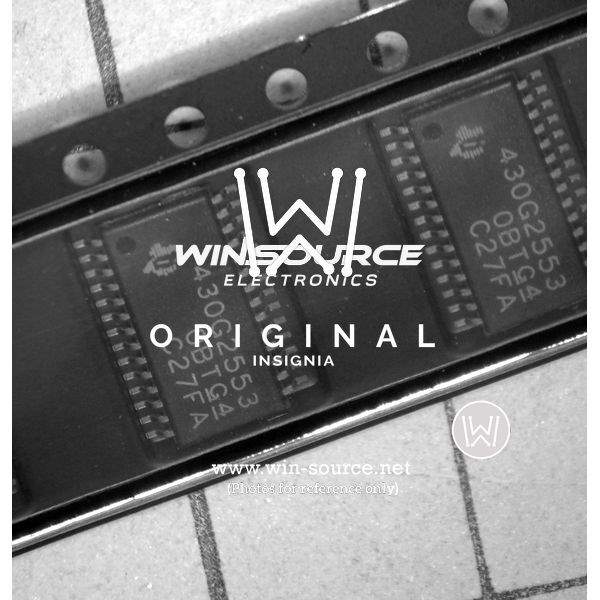

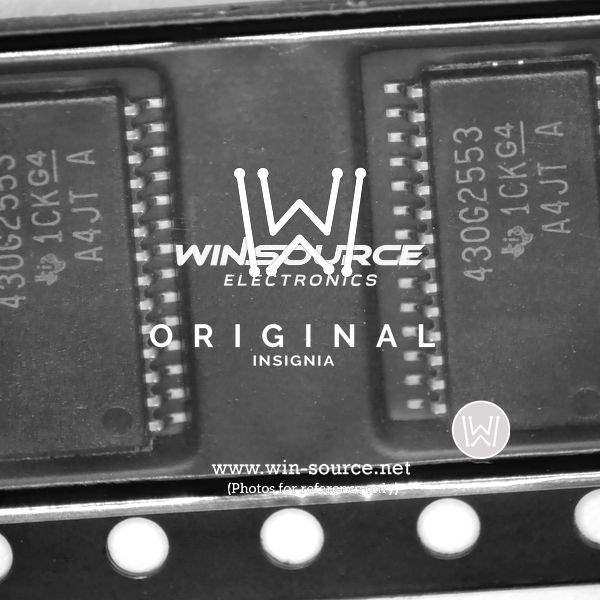

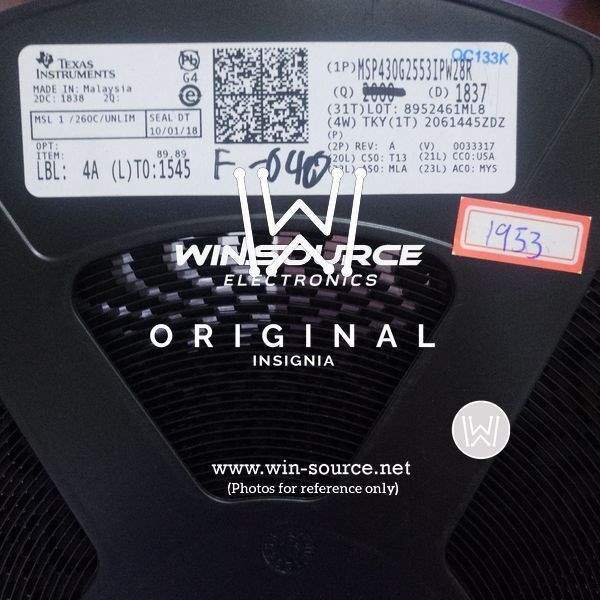

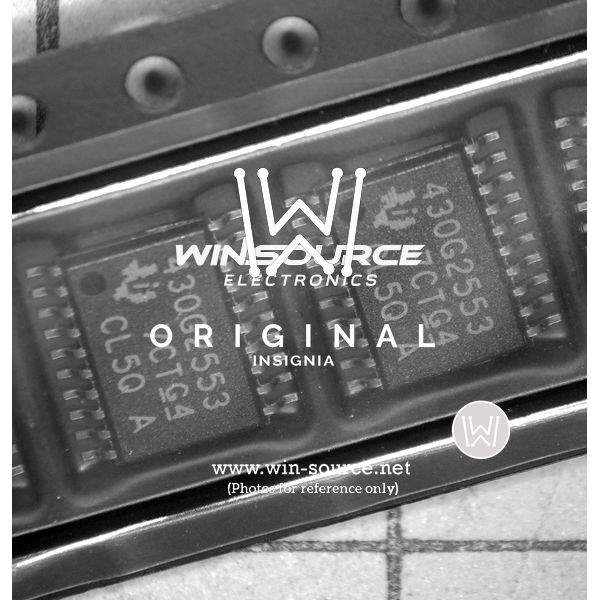

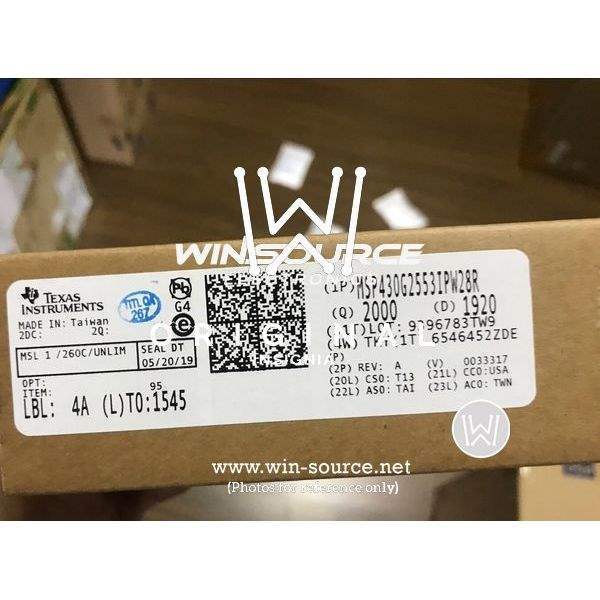

Same model may have multiple batches, images only for reference.
MSP430G2553IPW28R Texas Instruments MSP430G2553IPW28R Real Image MSP430G2553IPW28R label picture MSP430G2553IPW28R label picture 2 MSP430G2553IPW28R real image3696 MSP430G2553IPW28R real image3697 MSP430G2553IPW28R real image3698 MSP430G2553IPW28R Real Image
MSP430G2553IPW28R Texas Instruments MSP430G2553IPW28R Real Image MSP430G2553IPW28R label picture MSP430G2553IPW28R label picture 2 MSP430G2553IPW28R real image3696 MSP430G2553IPW28R real image3697 MSP430G2553IPW28R real image3698 MSP430G2553IPW28R Real Image
Same model may have multiple batches, images only for reference.

MSP430G2553IPW28R

Part No MSP430G2553IPW28R
Manufacturer Texas Instruments
Catalog Embedded - Microcontrollers
Description IC MCU 16BIT 16KB FLASH 28TSSOP
Datasheet
MSP430G2553IPW28R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Core Processor MSP430
Part Core Size 16-Bit
Speed(Frequency) 16MHz
Number of I/O 24
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
Data RAM Size 512 x 8
Supply Voltage - Operating 1.8 V to 3.6 V
Data Converters A/D 8x10b
Temperature Range - Operating -40°C to 85°C (TA)
Case / Package 28-TSSOP
Win Source Part Number 024524-MSP430G2553IPW28R
Family Name MSP430G2553
Introduction Date January 01, 2011
ECCN EAR99
Country of Origin Malaysia, Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MSP430G2553IPW28R CAD Model

Description

The MSP430G2553IPW28R from Texas Instruments is a high-performance, ultra-low-power mixed-signal microcontroller that is designed for a wide array of applications.

  • CPU: 16-bit RISC CPU
  • Registers: 16-bit
  • Constant generators: Yes
  • DCO wake-up time: Less than 1 µs
  • Flash memory: 16KB
  • RAM: 512 bytes
  • A/D converter: 10-bit analog-to-digital (A/D) converter
  • Communication interfaces: Two universal serial communication interfaces that offer enhanced USART for serial communication, and I2C for fast data transfer
  • Reset: Brown-out reset feature
  • Clock system: Versatile
  • Package: 28-pin TSSOP package
  • Temperature range: -40 to 85 degrees Celsius
