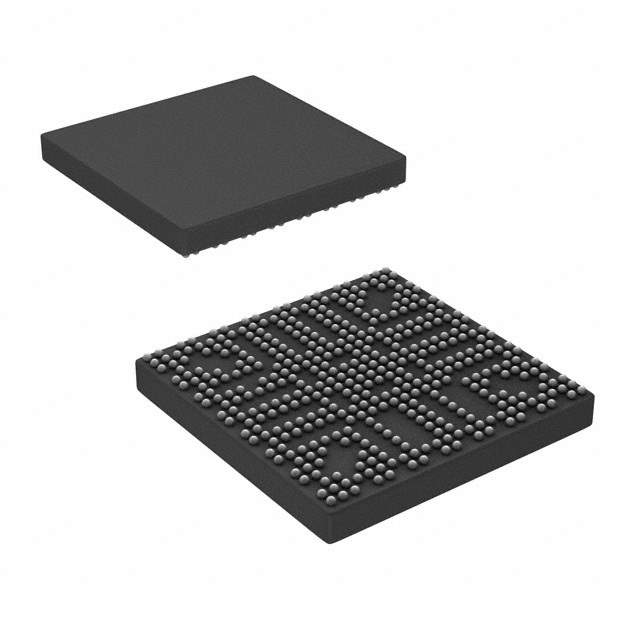

OMAP3515DCUS Real Image
Same model may have multiple batches, images only for reference.

OMAP3515DCUS

Part No OMAP3515DCUS
Manufacturer Texas Instruments
Catalog Embedded - Microprocessors
Description IC MPU OMAP-35XX 600MHZ 423FCBGA
Datasheet
OMAP3515DCUS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tray
Status Obsolete(EOL)
Core Processor ARM Cortex-A8
Number of Cores/Bus Width 1 Core, 32-Bit
Speed(Frequency) 600MHz
Co-Processors/DSP Multimedia; NEON SIMD
RAM Controllers LPDDR
Graphics Acceleration Yes
Display & Interface Controllers LCD
USB USB 1.x (3), USB 2.0 (1)
Voltage - I/O 1.8V, 3.0V
Temperature Range - Operating 0°C to 90°C (TJ)
Security Package / Case 423-LFBGA, FCBGA
Case / Package 423-FCBGA (16x16)
Additional Interfaces HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART
Win Source Part Number 139119-OMAP3515DCUS
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian OMAP3515DCUS CAD Model

Description

The OMAP3515DCUS is a high-performance, advanced application processor designed and manufactured by Texas Instruments, a leading global semiconductor company.

  • Product Family: OMAP (Open Multimedia Applications Platform)
  • Applications: Mobile computing, automotive infotainment, and industrial automation.
  • Core: ARM Cortex-A8 core.
  • Processor Speed: Up to 600 MHz.
  • Graphics Engine: Integrated graphics engine.
  • DSP Core: TMS320C64x+ DSP core.
  • Peripheral Interfaces: USB 2.0, MMC/SD/SDIO, UART, SPI, I2C, and GPIO.
