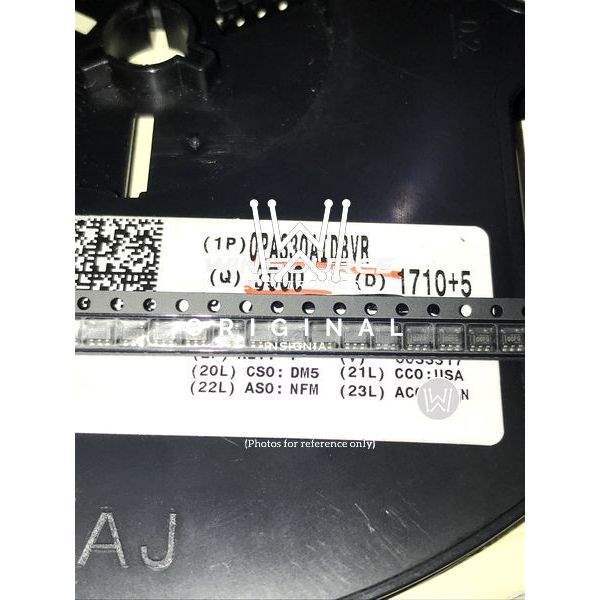

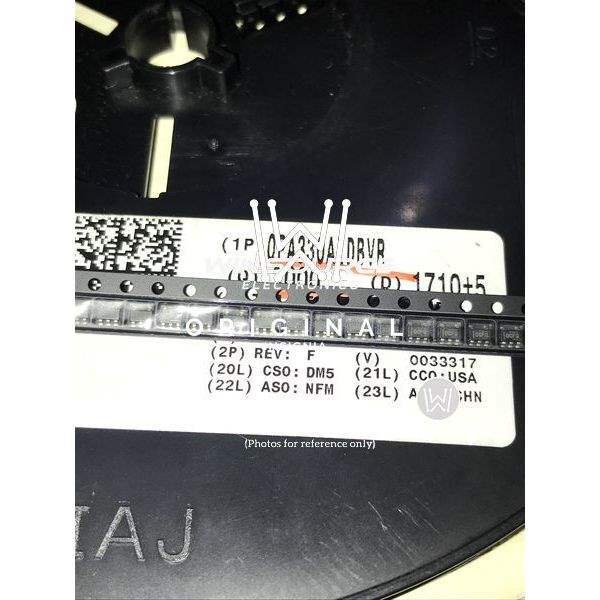

Product Overview: Texas Instruments OPA330AIDBVRG4

The OPA330AIDBVRG4 is a high-precision, low-power operational amplifier from Texas Instruments, designed to be an ideal choice for a wide range of applications that require accuracy and efficiency. This op-amp is part of the OPA330 family, which is known for its excellent performance in terms of low offset voltage, low power consumption, and small packaging.

Key Features

• Low Offset Voltage: The OPA330AIDBVRG4 boasts a very low input offset voltage, which significantly reduces error in precision applications.
• Low Power Consumption: With its focus on power efficiency, this operational amplifier is suitable for battery-powered devices and energy-sensitive applications.
• Rail-to-Rail Input/Output: The device offers rail-to-rail input and output swing, which allows for a wider dynamic range especially useful in single-supply operations.
• High CMRR: A high common-mode rejection ratio ensures that the amplifier is less sensitive to unwanted common-mode signals, improving the accuracy of differential measurements.
• MicroSize Package: The OPA330AIDBVRG4 comes in a compact SOT-23-5 package, making it an excellent choice for space-constrained applications.

Applications

Thanks to its precision and low-power characteristics, the OPA330AIDBVRG4 is well-suited for a variety of applications, including but not limited to:

• Portable and battery-powered instruments
• Sensor amplification and signal conditioning
• Medical instrumentation
• Data acquisition systems
• Process control
• Analog filters
• Active filtering
• Test and measurement equipment

Technical Specifications

The OPA330AIDBVRG4 operates within a supply voltage range of 1.8V to 5.5V, making it versatile for various circuit designs. It has a bandwidth of 350kHz and a quiescent current of just 17µA, which is excellent for applications where power efficiency is critical. The operating temperature range of -40°C to +125°C ensures reliable performance across diverse environmental conditions.

In summary, the Texas Instruments OPA330AIDBVRG4 is a robust, high-precision operational amplifier that provides the perfect blend of efficiency and performance, ideal for designers looking to optimize their analog circuitry in terms of power consumption, space, and accuracy.
