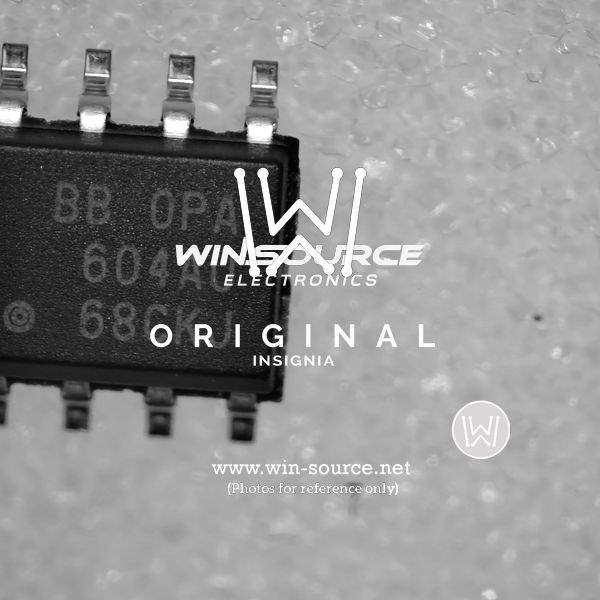

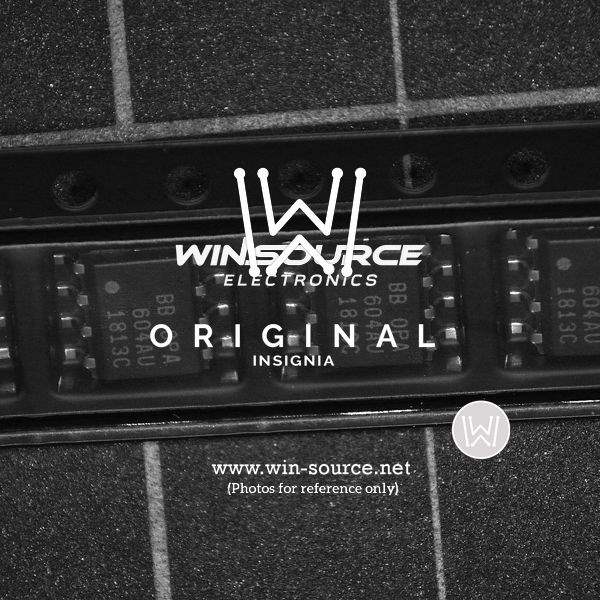

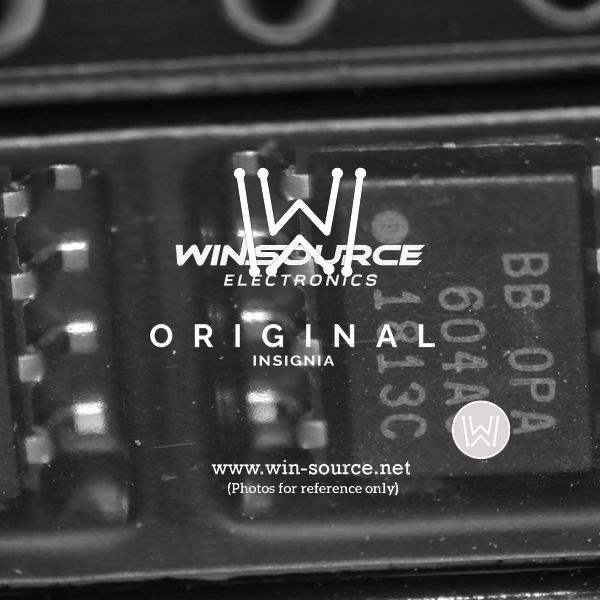

OPA604AU Real Image OPA604AU Real Image1 OPA604AU Real Image2 OPA604AU Real Image3 OPA604AU Real Image4
Same model may have multiple batches, images only for reference.
OPA604AU Real Image OPA604AU Real Image1 OPA604AU Real Image2 OPA604AU Real Image3 OPA604AU Real Image4
OPA604AU Real Image OPA604AU Real Image1 OPA604AU Real Image2 OPA604AU Real Image3 OPA604AU Real Image4
Same model may have multiple batches, images only for reference.

OPA604AU

Part No OPA604AU
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 20MHZ 8SOIC
Datasheet
OPA604AU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Amplifier Type General Purpose
Number of Circuits 1
Slew Rate 25 V/μs
Gain Bandwidth Product (GBP) 20MHz
Current - Input Bias 5pA
Voltage - Input Offset 1mV
Operating Supply Current 5.3mA
Channel Output Current 35mA
Supply Voltage - Operating 9 V to 48 V, ±4.5 V to 24 V
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 026167-OPA604AU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian OPA604AU CAD Model

Description

The OPA604AU is a high-performance, audio operational amplifier developed by Texas Instruments, a globally recognized company in the field of semiconductor technology.

  • FET Input: Offers low input bias currents, ideal for high impedance applications.
  • Bandwidth: 20MHz
  • Slew Rate: 25V/µs
  • Total Harmonic Distortion (THD): 0.0003%
  • Open-Loop Gain: 120dB
  • Power Supply Voltage: ±4.5V to ±18V
  • Short-Circuit Protection: Yes
  • Thermal Shutdown: Yes
  • Package: 8-pin SOIC
  • Operating Temperature Range: -40°C to +85°C
