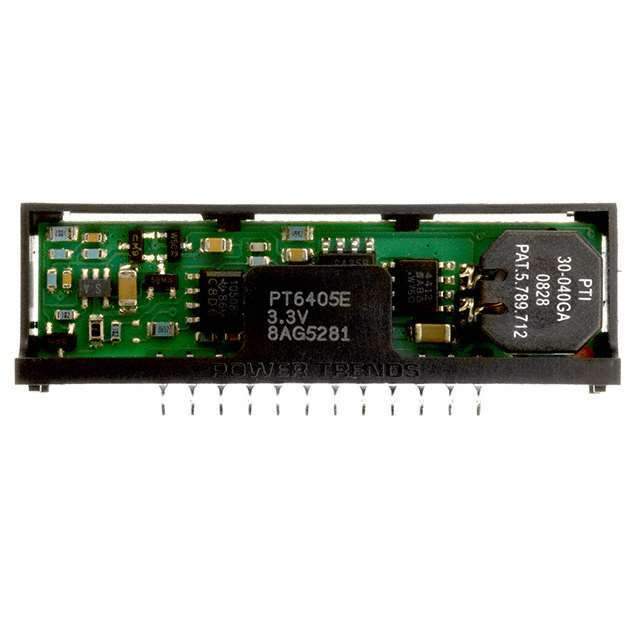

PT6405E

Part No PT6405E
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description 3 Amp 5V Input Adjustable Integrated Switching Regulator
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Texas Instruments
Series PT6400
Packaging Tray
Part Status Obsolete(EOL)
Type Non-Isolated PoL Module
Number of Outputs 1
Input Voltage MIN 4.5V
Voltage Input MAX 5.5V
Voltage - Output 1 3.3V
Current - Output (Maximum) 3A
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 85%
Mounting SMD
Package 12-SIP SMD Module
Win Source Part Number 1240385-PT6405E
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Family Name PT6405
Halogen Free Not Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian PT6405E CAD Model

Description

The PT6405E is a highly integrated power module designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This advanced module is engineered to provide a reliable and efficient power supply for a wide range of applications, particularly those requiring a compact and durable power solution.

Key Features

  • Integrated Switching Regulator: The PT6405E comes with an integrated switching regulator, which enables it to provide a stable and efficient power output with a minimal number of external components.
  • Adjustable Output Voltage: This power module features an adjustable output voltage, giving designers the flexibility to tailor the power supply to their specific needs.
  • High Efficiency: With its advanced design, the PT6405E achieves high efficiency, which helps to reduce heat generation and improve overall system reliability.
  • Easy-to-Use: The module is designed for ease of use, featuring a simple pin-out and requiring minimal external components, making it ideal for quick integration into a variety of systems.

Applications

The PT6405E is suitable for a range of applications, including but not limited to:

  • Telecommunications equipment
  • Industrial systems
  • Networking hardware
  • Portable electronics

Technical Specifications

Parameter Value
Input Voltage Range 5V to 12V
Output Voltage Range Adjustable
Efficiency Up to 90%
Operating Temperature -40°C to +85°C

Quality and Reliability

Texas Instruments is committed to delivering high-quality and reliable components. The PT6405E is no exception and is built to meet rigorous industry standards, ensuring performance and longevity in demanding environments.
