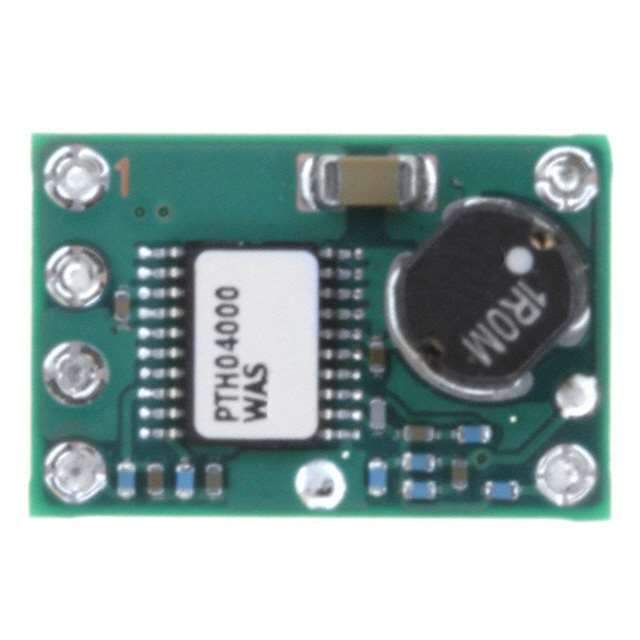

Product Overview: PTH04000WAS from Texas Instruments

The PTH04000WAS is a remarkable power module from Texas Instruments, renowned for its exceptional efficiency and versatility in a wide range of applications. This non-isolated power module is part of the PTH series that offers a compact and reliable solution for converting a higher voltage input to a lower voltage output with outstanding thermal performance.

Key Features

• Wide Input Range: The PTH04000WAS operates with an input voltage range of 2.95V to 5.5V, making it suitable for a variety of intermediate bus architectures and distributed power systems.
• Adjustable Output Voltage: It provides an adjustable output voltage range from 0.8V to 3.6V, which allows for high flexibility in matching the voltage requirements of different loads such as processors, FPGAs, and other logic devices.
• High Efficiency: With an efficiency of up to 90%, this power module minimizes power loss, ensuring optimal performance in your system.
• Output Current: The module is capable of delivering up to 3A of output current, providing sufficient power for most medium-power applications.
• Small Footprint: The compact size of the PTH04000WAS, encapsulated in a small 15.24mm x 8.50mm x 5.00mm package, makes it an excellent choice for space-constrained applications.
• Thermal Protection: It includes features such as over-temperature protection, which ensures the module operates within safe temperature ranges.
• Easy Integration: The power module is designed with ease of use in mind, requiring minimal external components for operation, which simplifies the design and reduces time to market.

Applications

The PTH04000WAS is ideal for a variety of applications, including but not limited to:

• Telecommunications equipment
• Networking equipment
• Industrial systems
• Computing and storage systems
• Point of load applications

With its robust design and advanced features, the PTH04000WAS from Texas Instruments stands out as a powerful solution for efficient power conversion in your electronic designs.
