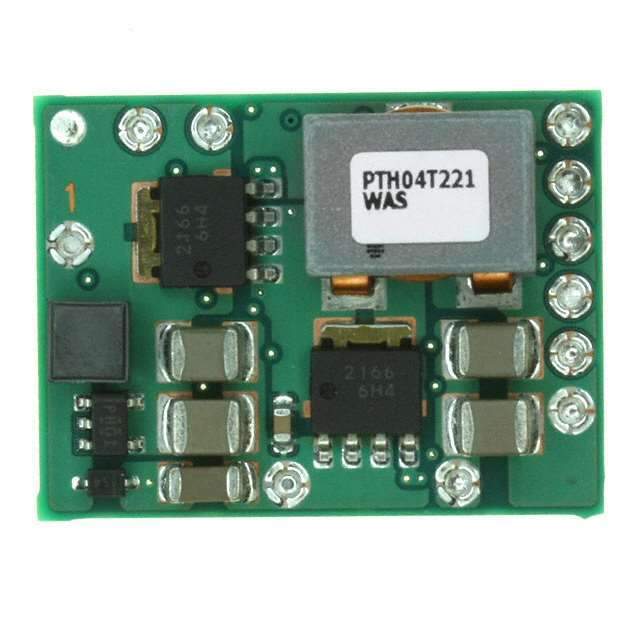

The PTH04T221WAS is a high-performance, adjustable, non-isolated module with a single output integrated power solution from Texas Instruments (TI). This state-of-the-art power module is designed to meet the needs of a wide range of applications, particularly in the telecommunications, networking, and industrial markets, where efficiency, reliability, and compactness are critical.

Key Features

• Wide Input Voltage Range: The PTH04T221WAS operates over an input voltage range of 2.95 V to 3.65 V, making it versatile for various low-voltage applications.
• High Output Current: This module can deliver up to 10 A of output current, which is ideal for powering high-performance digital ICs such as ASICs, FPGAs, DSPs, and microprocessors.
• Adjustable Output Voltage: The output voltage is adjustable from 0.7 V to 2.0 V, allowing precise voltage regulation tailored to specific circuit requirements.
• High Efficiency: With an efficiency of up to 95%, the PTH04T221WAS minimizes power loss and heat dissipation, enhancing system performance and reliability.
• Fast Transient Response: The module's excellent transient response ensures stable operation during rapid load changes, which is crucial for sensitive electronic equipment.
• Thermal Performance: Enhanced thermal performance is achieved through the use of a low-profile, thermally enhanced package that facilitates heat dissipation.

Applications

The PTH04T221WAS is suitable for a variety of applications, including:

• Telecommunications infrastructure
• Networking equipment such as routers and switches
• Industrial and test equipment
• Computing and storage systems

Product Benefits

With its compact size and high-performance features, the PTH04T221WAS offers designers a reliable and efficient power management solution that can be easily integrated into existing and new designs. Its advanced specifications ensure that it can meet the stringent requirements of modern electronic systems, reducing design complexity and time to market.
