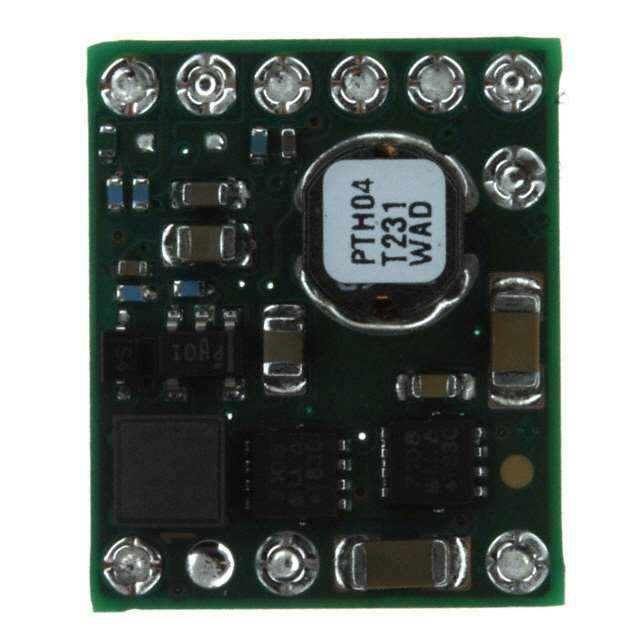

PTH04T231WAD

Name: PTH04T231WAD
Brand: Texas Instruments
SKU: 283807
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH04T231WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 6A 5.5V T/H 10-DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	36
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH04T231W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.2V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.69 ~ 3.6 V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	10-DIP Module
Size / Dimension	0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	21.6W
Catalog	PTH04T230W/231W
Win Source Part Number	082089-PTH04T231WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH04T231WAD CAD Model

Alternative Products

Description

The PTH04T231WAD is a high-performance, 10A rated, non-isolated power module from Texas Instruments.

Input Voltage Range: 3V to 14V
Output Voltage Range: 0.8V to 5.5V
Output Current: Up to 10A
Efficiency: Up to 96%
Over-Temperature Protection: Yes
Output Over-Current Protection: Yes
Input Under-Voltage Lockout: Yes
Size: 1.30 x 0.53 x 0.32 inches (33.02 x 13.46 x 8.13 mm)
Weight: 0.35 ounces (10 grams)
