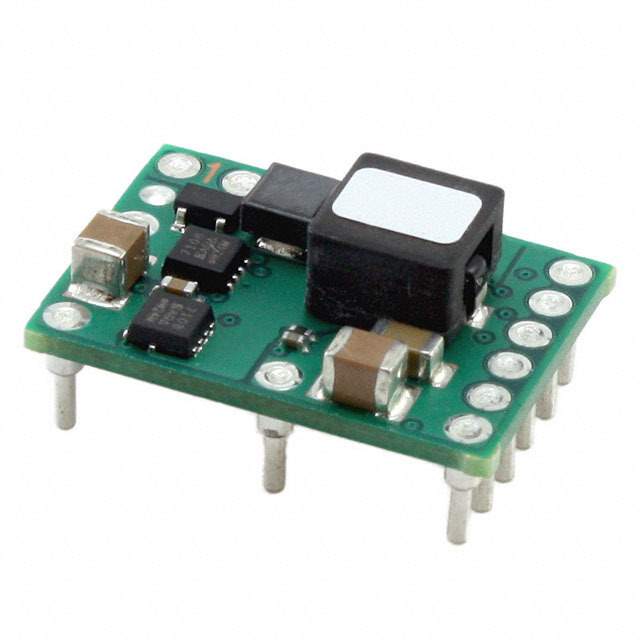

PTH04T240WAD

Name: PTH04T240WAD
Brand: Texas Instruments
SKU: 283808
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTH04T240WAD
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP 10A HORZ T/H 11-DIP
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Texas Instruments
Standard Package	49
Category	Power Supplies - Board Mount
Family	DC DC Converters
Series	PTH04040W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.2V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.69 ~ 3.6 V
Current - Output (Max)	10A
Applications	ITE (Commercial)
Mounting Style	Through Hole
Package	11-DIP Module
Size / Dimension	0.87" L x 0.62" W x 0.33" H (22.1mm x 15.7mm x 8.4mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	36W
Catalog	PTH04040W Series
Win Source Part Number	082090-PTH04T240WAD
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PTH04T240WAD CAD Model

Alternative Products

Description

The PTH04T240WAD from Texas Instruments is a high-performance, 10A rated, non-isolated power module that is part of the PTH series.

Adjustable Output Voltage: 0.7V to 5.5V
Input Voltage Range: 4.5V to 14V
Efficiency: Up to 96%
Auto-Track Sequencing: Yes
Under-Voltage Lockout (UVLO): Yes
Over-Current Protection (OCP): Yes
Over-Temperature Protection (OTP): Yes
