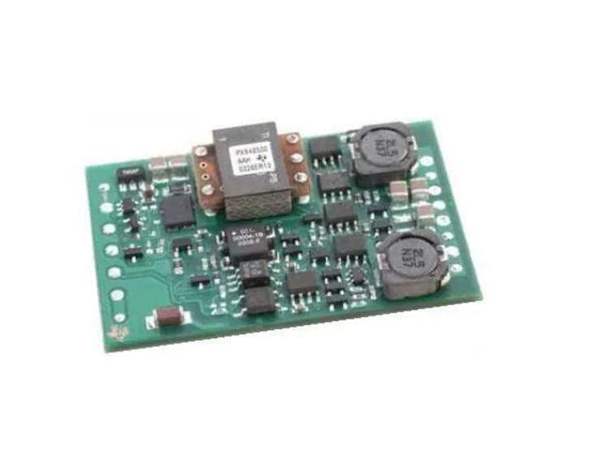

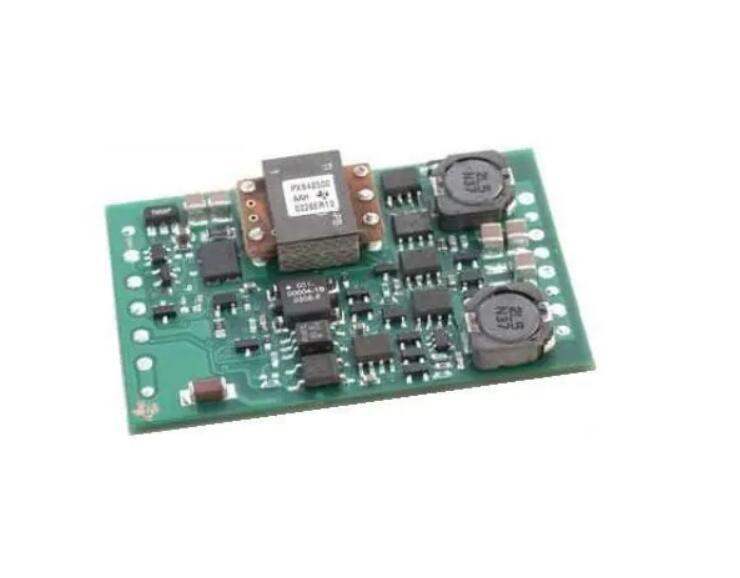

Product Overview - PTH04T260WAZT

The PTH04T260WAZT is a state-of-the-art power module from Texas Instruments, designed to deliver exceptional performance and reliability for a wide range of applications. This compact and efficient module is part of the PTH series, which is renowned for its advanced power management technology.

Key Features

• Wide Input Voltage Range: The module operates on a broad input voltage range of 2.95V to 3.65V, making it versatile for various power supply scenarios.
• High Output Current: It can deliver an impressive output current of up to 6A, suitable for high-power applications.
• Adjustable Output Voltage: The output voltage is adjustable from 0.7V to 2V, allowing for flexible use across different voltage requirements.
• High Efficiency: With an efficiency rating of up to 95%, this module ensures minimal power loss and heat generation.
• Thermal Management: The PTH04T260WAZT comes with an integrated heat spreader that aids in effective thermal dissipation.
• Power Good Output: The module includes a 'power good' output feature for easy sequencing and monitoring of the power system.
• Pre-Biased Startup: It supports pre-biased startup, ensuring safe and reliable operation when interfacing with other power sources.

Applications

The PTH04T260WAZT is ideal for a variety of applications, including but not limited to:

• Telecommunications equipment
• Networking hardware such as routers and switches
• Servers and storage systems
• Industrial controls
• Test and measurement devices

Quality and Reliability

As with all Texas Instruments products, the PTH04T260WAZT is manufactured to the highest quality standards, ensuring reliable operation even in the most demanding conditions. It is RoHS compliant and designed to meet rigorous industry standards for performance and durability.

Conclusion

The PTH04T260WAZT from Texas Instruments is a powerful, efficient, and versatile power module that offers advanced features for modern electronic systems. Its robust design and flexible voltage options make it an excellent choice for engineers looking to optimize their power management solutions.
