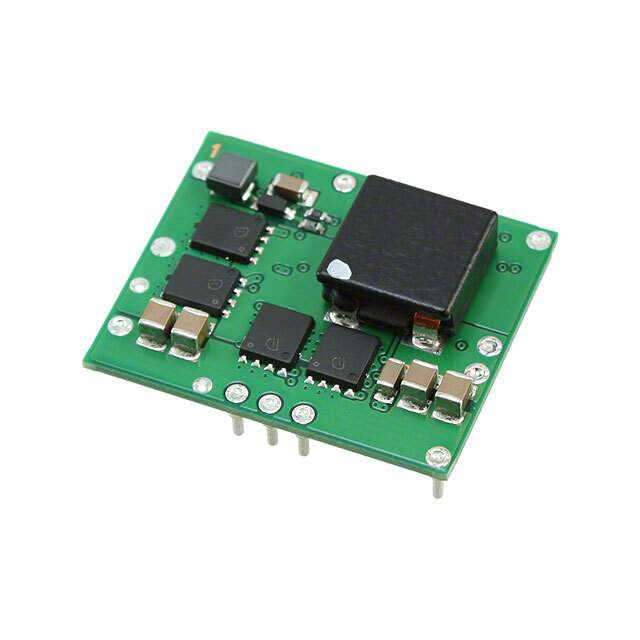

PTH05030WAH

Name: PTH05030WAH
Brand: Texas Instruments
SKU: 283822
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PTH05030WAH
Manufacturer	Texas Instruments
Catalog	Power Supplies Board Mount DCDC Converters
Description	MODULE PIP .8-3.6V 30A T/H 13DIP
Datasheet	PTH05030WAH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount
Family	DC DC Converters
Manufacturer	Texas Instruments
Series	PTH05030W
Packaging	Tray
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.8 ~ 3.6 V
Current - Output (Max)	30A
Applications	ITE (Commercial)
Features	UVLO
Mounting Style	Through Hole
Package	13-DIP Module
Size / Dimension	1.37" L x 1.12" W x 0.35" H (34.8mm x 28.4mm x 8.9mm)
Operating Temperature Range	-40°C ~ 85°C
Efficiency	94%
Power (Watts) - Max	108W
Win Source Part Number	026945-PTH05030WAH
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian PTH05030WAH CAD Model

Alternative Products

Description

The PTH05030WAH is an innovative product from Texas Instruments, a globally renowned company in the field of semiconductors.

Rated Current: 15-A
Input Voltage Range: 4.5 V to 14 V
Output Voltage: 0.8 V to 3.6 V
Auto-Track Sequencing: Yes
Efficiency: Up to 96%
Over-Temperature Shutdown: Yes
Output Over-Current Protection: Yes
Under-Voltage Lockout: Yes
