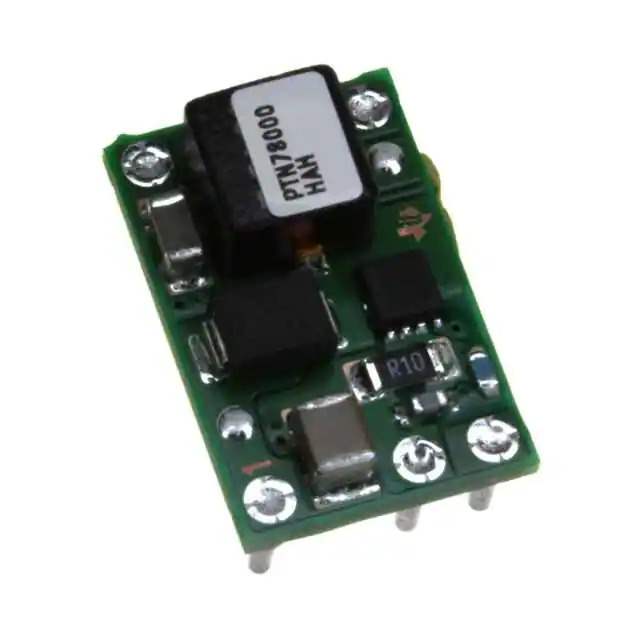

Product Overview: PTN78000HAH from Texas Instruments

The PTN78000HAH is a high-performance, adjustable step-down switcher module from Texas Instruments, a leader in semiconductor solutions. This efficient power module is designed to offer a flexible, fast, and easy solution for a wide range of applications, including industrial, communications, and computing systems.

Key Features:

• Wide Input Range: The PTN78000HAH operates over a broad input voltage range from 7V to 36V, making it versatile for various applications and ensuring compatibility with a multitude of power supplies.
• Adjustable Output Voltage: Its output voltage can be adjusted from 2.5V to 12.6V, allowing for high flexibility in different circuit designs and the ability to adapt to specific voltage requirements of connected devices.
• High Efficiency: With an efficiency of up to 96%, this power module minimizes energy loss, ensuring reliable performance and extended life for end-use applications.
• Integrated Shielded Inductor: The module includes an integrated shielded inductor that provides excellent power density and helps reduce electromagnetic interference (EMI), a critical feature for sensitive electronic equipment.
• Thermal Performance: The PTN78000HAH is encapsulated in a thermally enhanced, surface-mount package that provides improved thermal performance and allows for operation over a wide temperature range.

Applications:

The PTN78000HAH is ideal for use in a variety of applications, including:

• Telecommunications Equipment
• Industrial Control Systems
• Point of Load Power Distribution Systems
• Networking Equipment
• Computing Devices

Reliability and Support:

Texas Instruments is known for its commitment to quality and reliability. The PTN78000HAH is no exception, providing a reliable power solution backed by Texas Instruments' extensive technical support and documentation. Designers can rest assured that they are integrating a power module that meets the highest standards of performance and reliability.
