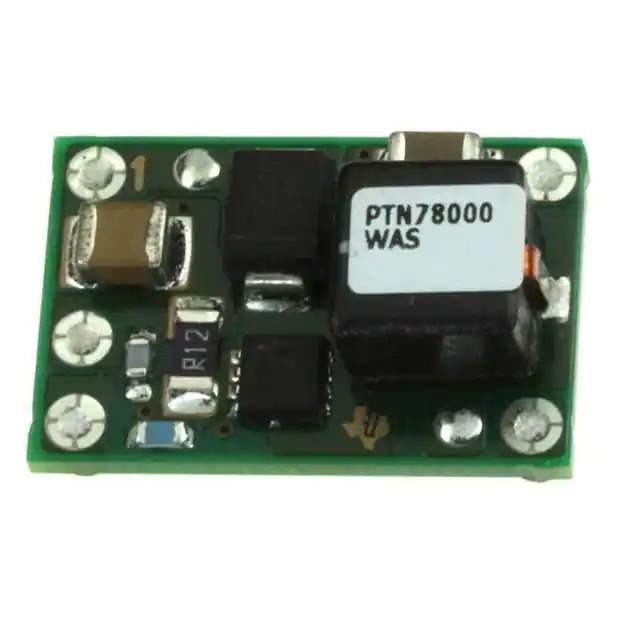

The PTN78000WAS from Texas Instruments is a high-performance, adjustable switching regulator that offers the flexibility and efficiency needed for a wide range of power management applications. This regulator is part of the PTN78000 series, known for its reliability and ease of use.

Key Features

• Wide Input Voltage Range: The PTN78000WAS operates over a broad input voltage range of 7V to 36V, making it suitable for various industrial and commercial power supply applications.
• Adjustable Output Voltage: Users can adjust the output voltage from 2.5V to 12.6V to cater to different circuit requirements, providing a versatile solution for multiple configurations.
• High Efficiency: With an efficiency of up to 96%, this regulator ensures minimal power loss and is ideal for energy-sensitive applications.
• Integrated Heat Sink: The module comes with an integrated heat sink that provides excellent thermal performance, enabling it to operate in a wide temperature range without the need for additional cooling components.
• Output Current: It can deliver up to 3A of output current, which is sufficient for a variety of electronic devices and systems.
• Protection Features: The PTN78000WAS is equipped with overcurrent protection, thermal shutdown, and under-voltage lockout, ensuring the safety and longevity of both the regulator and the devices it powers.

Applications

The versatile PTN78000WAS adjustable switching regulator is ideal for a range of applications, including:

• Telecommunications equipment
• Industrial systems
• Portable devices
• Networking equipment
• Computing devices

Conclusion

With its robust design, high efficiency, and flexible output voltage range, the PTN78000WAS from Texas Instruments stands out as a top choice for designers looking to optimize their power management solutions. Its ability to handle a wide variety of conditions and requirements makes it a highly adaptable component for numerous electronic products.
