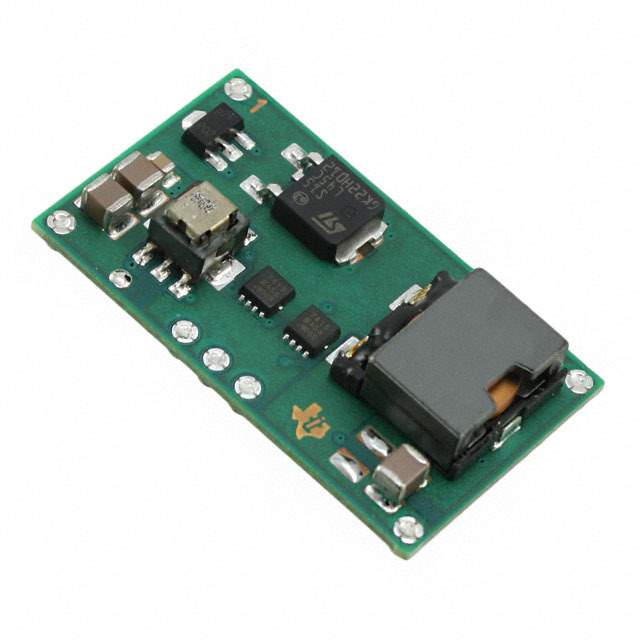

PTN78020WAS Real Image
Same model may have multiple batches, images only for reference.

PTN78020WAS

Part No PTN78020WAS
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW 2.5-12.6V 6A SMD
Datasheet
PTN78020WAS Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTN78020W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 7V
Voltage - Input (Max) 36V
Voltage - Output 1 2.5 ~ 12.6 V
Current - Output (Max) 6A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 7-SMD Module
Size / Dimension 1.50" L x 0.87" W x 0.38" H (38.1mm x 22.1mm x 9.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 94%
Power (Watts) - Max 76W
Win Source Part Number 004477-PTN78020WAS
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTN78020WAS CAD Model

Description

The PTN78020WAS from Texas Instruments is a highly innovative, cutting-edge product designed to revolutionize the way we approach power management in electronic devices.

  • Type: 3-A, wide-input adjustable switching regulator module
  • Output Voltage: Adjustable output voltage ranges from -6V to 6V
  • Input Voltage: Input voltage range of 7V to 36V
  • Efficiency: High efficiency, which can reach up to 96%
  • Thermal Performance: Exceptional thermal performance
  • Protection: Over-temperature and under-voltage lockout protection
  • Size: Compact
