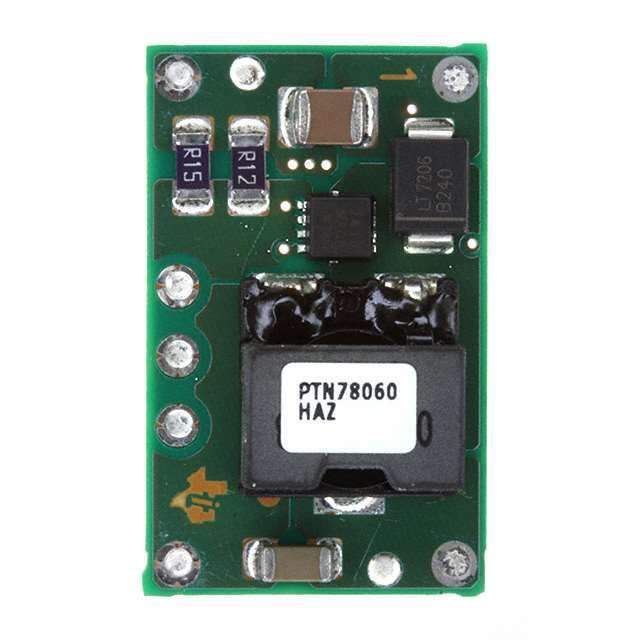

PTN78060HAZ Real Image
Same model may have multiple batches, images only for reference.

PTN78060HAZ

Part No PTN78060HAZ
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REGULATOR WIDE-IN 3A HORZ SMD
Datasheet
PTN78060HAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTN78060H
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 15V
Voltage - Input (Max) 36V
Voltage - Output 1 11.85 ~ 22 V
Current - Output (Max) 3A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Mounting Style SMD/SMT
Package 7-SMD Module
Size / Dimension 1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 96%
Power (Watts) - Max 66W
Win Source Part Number 004479-PTN78060HAZ
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, HVAC, Test & Measurement, Medical
Ultra Librarian 3D Model Ultra Librarian PTN78060HAZ CAD Model

Description

The PTN78060HAZ is a high-performance, integrated circuit (IC) product from Texas Instruments, a globally recognized leader in the field of semiconductor technology.

  • Type: 3-A, wide-input, adjustable switching regulator module
  • Input Voltage Range: From 14.4 V to 75 V
  • Output Voltage Range: Adjustable output voltage range from -6.0 V to -3.3 V
  • Efficiency: Up to 90%
  • Protection: Over-temperature and over-current protection
  • Design: Compact, solderable space-saving design
  • Operating Temperatures: -40°C to +85°C
  • Compliance: RoHS compliant
