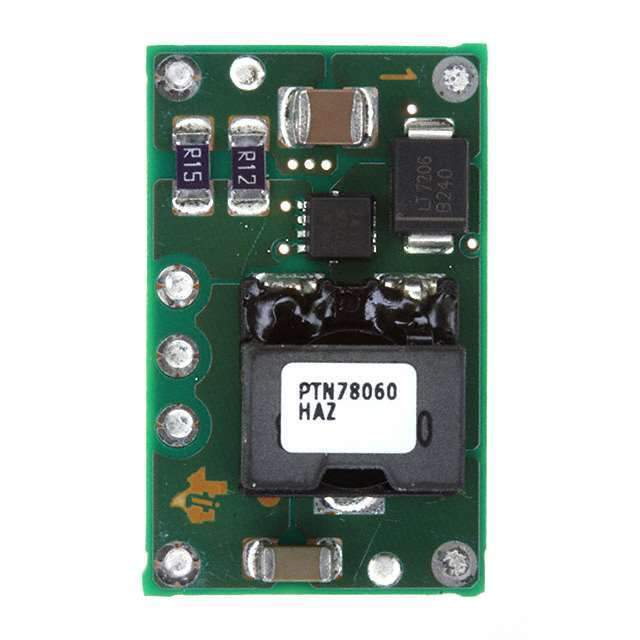

The PTN78060HAZT is a high-performance, adjustable step-down power module from Texas Instruments. This module is designed to provide exceptional flexibility and efficiency in a compact form factor, making it an ideal solution for a wide range of applications including telecommunications, industrial systems, and computing infrastructure.

Key Features:

• Wide Input Voltage Range: The PTN78060HAZT operates over a broad input voltage range from 7V to 36V, accommodating a variety of power sources.
• Adjustable Output Voltage: This module offers an adjustable output voltage from 2.5V to 12.6V, allowing for precise voltage regulation tailored to the specific needs of the application.
• High Efficiency: With an efficiency of up to 95%, the PTN78060HAZT minimizes power loss and heat generation, thereby reducing the need for additional cooling systems.
• High Output Current: It is capable of delivering up to 3A of output current, providing ample power for a variety of electronic devices and circuits.
• Integrated Thermal Protection: The module includes over-temperature protection, ensuring reliable operation and preventing damage from excessive heat.
• Small Footprint: The compact size of the PTN78060HAZT, encapsulated in a small 10.16mm x 11.43mm x 2.4mm package, makes it suitable for space-constrained applications.
• Easy Implementation: With minimal external components required for operation, this power module simplifies the design and reduces time to market.

Applications:

• Telecommunications Equipment
• Industrial and Test Equipment
• Networking Infrastructure
• Computing and Storage Systems
• Portable Devices

The PTN78060HAZT from Texas Instruments represents a blend of performance, versatility, and ease of use, making it a go-to solution for power management challenges in a diverse array of electronic systems. Its robust design and comprehensive feature set ensure that it can meet the stringent requirements of modern electronic devices.
