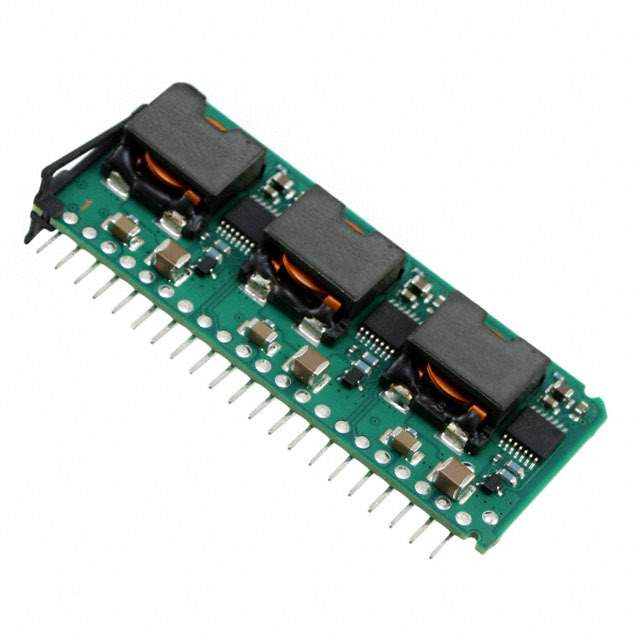

PTV08040WAD Real Image
Same model may have multiple batches, images only for reference.

PTV08040WAD

Part No PTV08040WAD
Manufacturer Texas Instruments
Catalog Power Supplies Board Mount DCDC Converters
Description REG SW .8-3.6V 50A VERT T/H
Datasheet
PTV08040WAD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Texas Instruments
Series PTV08040W
Packaging Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 8V
Voltage - Input (Max) 14V
Voltage - Output 1 0.8 ~ 3.6 V
Current - Output (Max) 50A
Applications ITE (Commercial)
Features UVLO
Mounting Style Through Hole
Package 21-DIP Module
Size / Dimension 2.36" L x 0.37" W x 0.95" H (59.9mm x 9.4mm x 24.1mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 95%
Power (Watts) - Max 180W
Win Source Part Number 210351-PTV08040WAD
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PTV08040WAD CAD Model

Description

The PTV08040WAD is an advanced, high-performance product from Texas Instruments, a renowned global semiconductor company.

  • Manufacturer: Texas Instruments
  • Input Voltage: 3.3V
  • Output Voltage: Adjustable in the range of 0.8V to 2.5V
  • Input Voltage Range: 3V to 3.6V
  • Efficiency: Typical efficiency of 90% @ 1.8V output voltage
  • Feature: Auto-Track sequencing
  • Features: Under-voltage lockout, output over-current protection
  • Package: Compact, surface-mount package
  • Compliance: RoHS compliant
  • Operating Temperature Range: -40°C to 85°C
  • Feature: High power density
