REG103GA-A/2K5G4

Part No REG103GA-A/2K5G4
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear

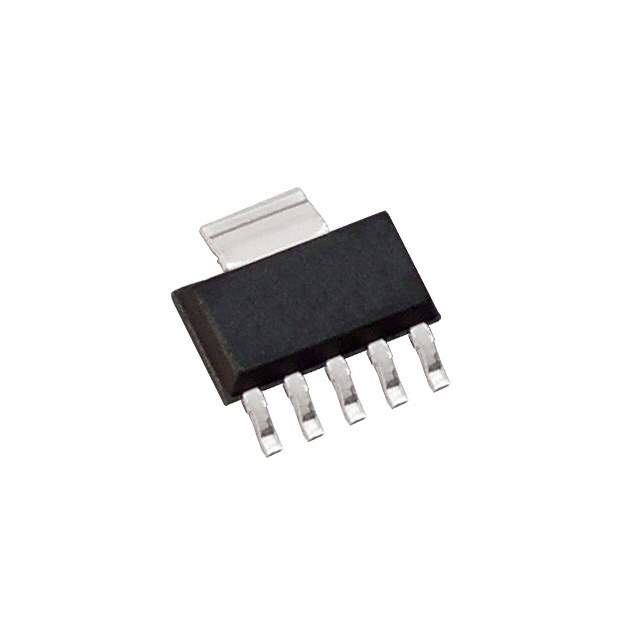

Description IC REG LDO ADJ 0.5A SOT223-6
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Output Type Adjustable
Number of Regulators 1
Maximum Input Voltage 15V
Nominal Output Voltage (Min/Fixed) 1.295V
Maximum Output Voltage 5.5V
Dropout Voltage-Max 0.28V @ 500mA
Output Current 500mA
Operating Supply Current 0.7mA to 1.3mA
PSRR 65dB (120Hz)
Control Features Enable
Protection Features Over Current, Over Temperature
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SOT-223-6
Win Source Part Number 1091929-REG103GA-A/2K5G4
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian REG103GA-A/2K5G4 CAD Model

Description

Introducing the REG103GA-A/2K5G4 from Texas Instruments

The REG103GA-A/2K5G4 is a high-performance, low-dropout (LDO) voltage regulator designed by Texas Instruments, a leader in semiconductor solutions. This regulator is a perfect choice for applications requiring a regulated output voltage with low dropout voltage and low noise performance.

With an output voltage of 2.5V, this device is capable of delivering a continuous output current of up to 500mA, making it suitable for a wide range of applications including portable devices, microcontrollers, and analog circuits. The REG103GA-A/2K5G4 offers excellent regulation over variations in line, load, and temperature, ensuring a stable and reliable power supply to sensitive electronic components.

The regulator features a low dropout voltage of typically 500mV at full load, which enhances the efficiency of the system by allowing operations closer to the battery voltage. This makes it an ideal choice for battery-powered applications where maximizing the usable range of the battery voltage is crucial.

The REG103GA-A/2K5G4 also boasts a low ground pin current, which is nearly constant over a wide range of output loads, contributing to the overall power efficiency. The device's fast transient response ensures stable output voltage during rapid changes in load, which is critical for high-performance digital circuits that have fast switching loads.

For noise-sensitive applications, the REG103GA-A/2K5G4 excels with its low output noise, which can be further reduced with the addition of an external bypass capacitor. The regulator also features built-in protection mechanisms, including thermal shutdown and current limit to safeguard the device and the load from adverse conditions.

Available in a small SOT223-5 package, the REG103GA-A/2K5G4 is designed for space-constrained applications. Its compact form factor, combined with its impressive features, makes it an excellent choice for designers looking for a high-quality power management solution.

Overall, the REG103GA-A/2K5G4 from Texas Instruments is an outstanding LDO voltage regulator that offers a combination of high performance, low power consumption, and robust protection features, making it an ideal choice for a multitude of electronic applications.
