The SCANSTA101SM/NOPB is a sophisticated multiplexer/demultiplexer switch IC from Texas Instruments, designed to streamline the process of testing and debugging systems with multiple JTAG (Joint Test Action Group) or boundary-scan-capable devices. This integrated circuit is a key component in enhancing the efficiency and effectiveness of system-level testing, particularly in complex printed circuit boards (PCBs) that host a multitude of interconnected devices.

Key Features

• Advanced Multiplexing: The SCANSTA101SM/NOPB allows for the selection and control of multiple JTAG chains through a single JTAG port, significantly reducing the need for multiple test access points on a PCB.
• High Performance: With its high-speed digital interface, this IC ensures rapid and reliable communication between the test controller and the target devices, facilitating faster test routines and diagnostics.
• Space Saving: Its small footprint is ideal for dense PCB layouts, helping to conserve valuable board space while still delivering robust functionality.
• Enhanced Diagnostics: The device supports enhanced diagnostic capabilities, making it easier to pinpoint faults and verify system functionality throughout the development and production phases.

Applications

The SCANSTA101SM/NOPB is versatile and can be used in a variety of applications, including:

• Telecommunications equipment
• Networking hardware such as routers and switches
• Computing systems and servers
• Industrial control systems
• Automotive electronics
• Aerospace and defense systems

Technical Specifications

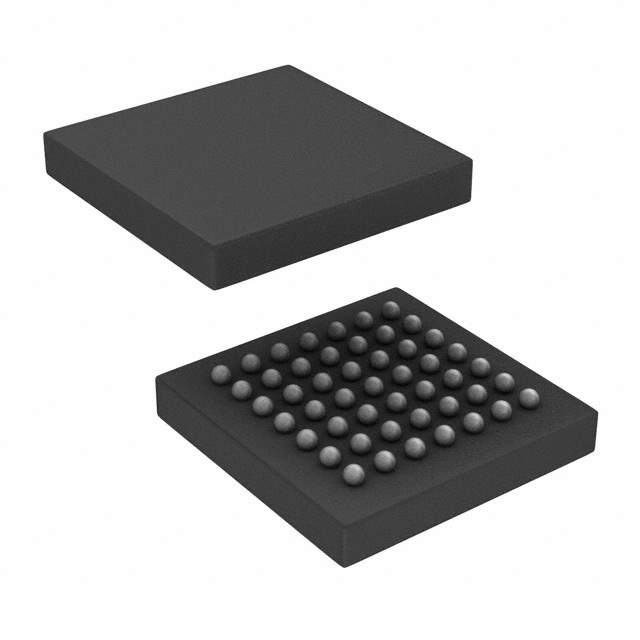

The device operates over a wide temperature range and is available in a surface-mount package that is compatible with standard PCB assembly processes. It supports a variety of voltage levels for interfacing with different logic families, and its design is optimized for low power consumption, making it suitable for use in power-sensitive applications.
