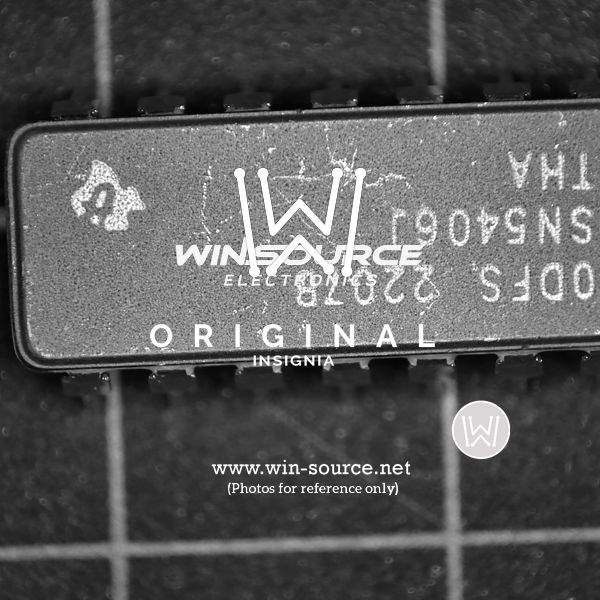

The SN5406J is a versatile integrated circuit from Texas Instruments, designed to cater to a wide array of electronic applications. This component is part of the SNx4xx series, known for their reliability and performance in digital systems. The SN5406J is particularly notable for its role in buffer and driver applications where signal integrity is crucial.

Key Features

• Hex Inverting Buffers/Drivers: The SN5406J includes six independent inverting buffers/drivers, providing ample capability for various design needs.
• High Voltage Outputs: With the ability to handle high voltage outputs, this IC is suitable for driving a wide range of components, including lamps, relays, and high-power transistors.
• Open-Collector Outputs: The open-collector design of the outputs allows for higher voltage tolerances and the ability to connect outputs together to increase driving capability.
• Wide Operating Temperature Range: The SN5406J is designed to operate effectively over a broad temperature range, making it ideal for industrial and automotive applications.

Applications

The SN5406J's robust design and high functionality make it suitable for various applications, including:

• Logic level conversion
• Signal buffering
• Line driving
• Memory address drivers

Quality and Reliability

Texas Instruments is known for its commitment to quality, and the SN5406J is no exception. This product is manufactured to meet high standards of performance and stability. It is a reliable choice for designers and engineers looking for a high-quality buffer/driver solution.

Technical Specifications

The SN5406J comes in a DIP (Dual In-line Package) making it easy to work with in prototyping and production environments. It requires a supply voltage typically ranging from 4.5V to 5.5V, making it compatible with standard TTL (Transistor-Transistor Logic) levels.

For detailed technical specifications and application notes, please refer to the official Texas Instruments datasheet for the SN5406J.
