Product Overview: SN65HVD63RGTT from Texas Instruments

The SN65HVD63RGTT is a robust, high-performance transceiver module from Texas Instruments, designed for RS-485 and RS-422 communication in industrial and commercial applications. This device is part of the SN65HVD6x family that offers a range of features to facilitate reliable data transmission over long distances and in noisy environments.

Key Features

• Bus-Pin ESD Protection: The SN65HVD63RGTT comes with an impressive Electrostatic Discharge (ESD) protection of up to 16 kV Human Body Model (HBM), ensuring the device's resilience against static electricity which is common in industrial settings.
• Wide Supply Range: It operates over a wide supply voltage range from 3.3V to 5V, making it versatile for use in various systems without the need for additional voltage level translation.
• High Data Rate: With the capability to support data rates up to 20 Mbps, the device is suitable for high-speed data communication requirements.
• Differential Output: The transceiver ensures robust communication with differential output exceeding 2.1V into a 54Ω load, which promotes signal integrity and reduces the likelihood of data corruption.
• Thermal Shutdown Protection: The built-in thermal shutdown protection feature prevents the device from overheating, enhancing its reliability and lifespan.
• Low Power Consumption: It is designed for low-power operation, which is critical for energy-efficient designs and battery-powered applications.

Applications

The SN65HVD63RGTT is ideal for a variety of applications that require robust and reliable data communication, including:

• Industrial control systems
• Building automation
• Networked security cameras
• Telecommunications equipment
• Factory automation

Package and Quality

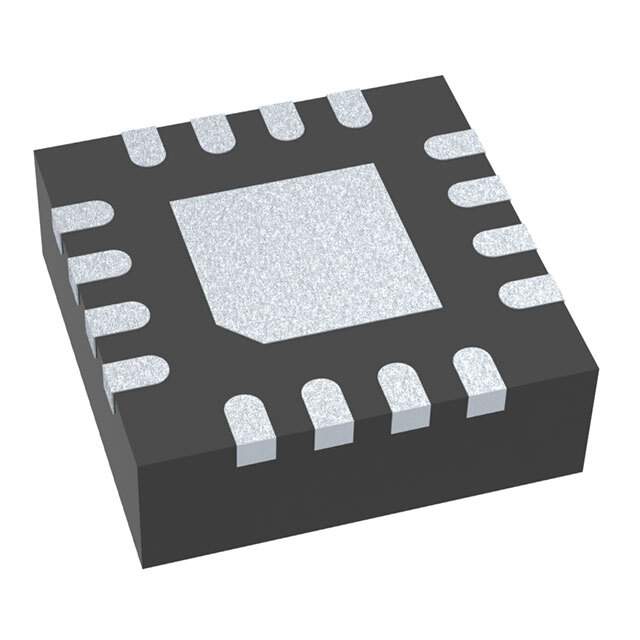

This device is available in a compact 16-pin QFN package, making it suitable for space-constrained applications. It is also characterized for operation from -40°C to 125°C, ensuring performance in extreme temperatures. Texas Instruments is known for its commitment to quality, and the SN65HVD63RGTT is no exception, meeting stringent industry standards for reliability and performance.
