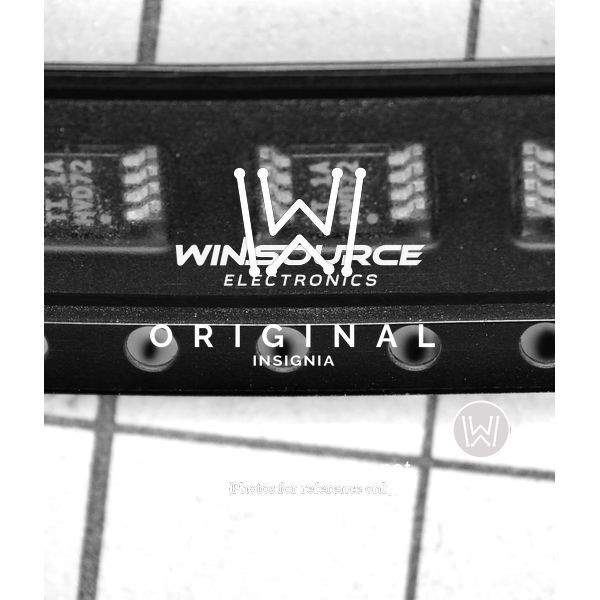

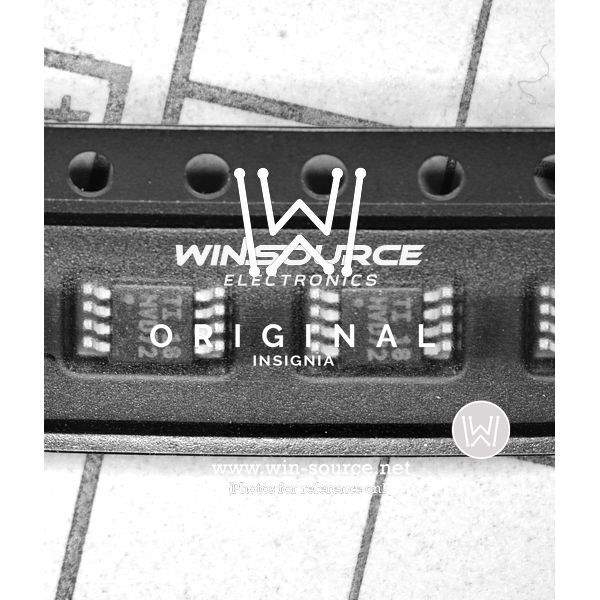

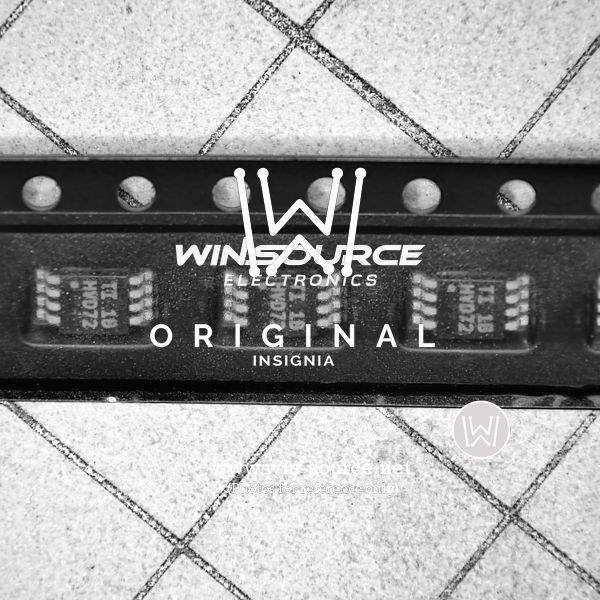

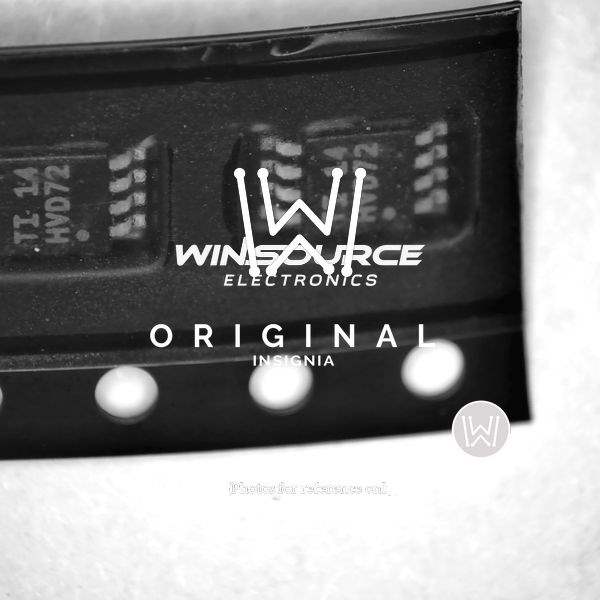

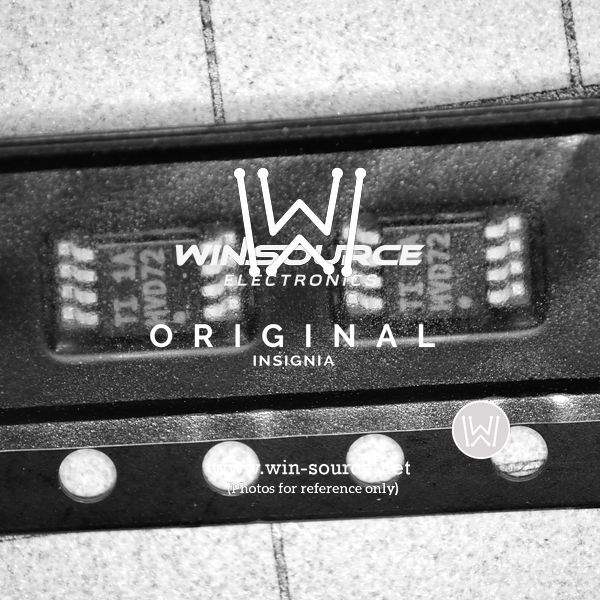

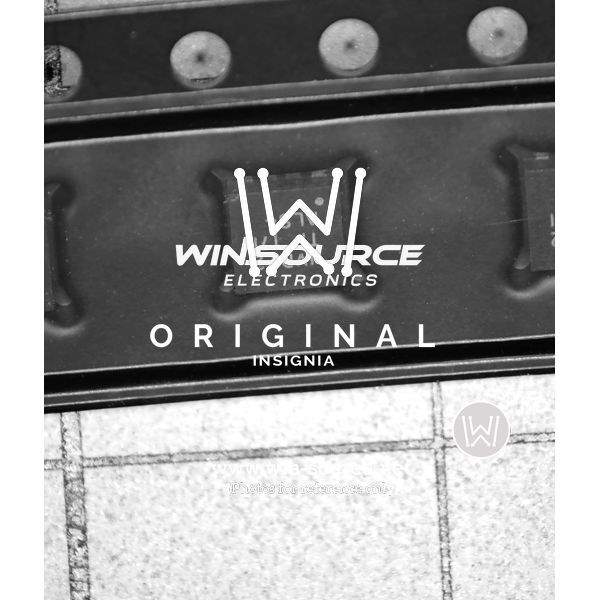

Product Overview: SN65HVD72DGKR by Texas Instruments

The SN65HVD72DGKR is a robust, industrial-grade transceiver from Texas Instruments, designed for RS-485 and RS-422 communication. This particular model is part of the SN65HVD72 family, which is known for its reliability and performance in demanding applications. The device facilitates bidirectional data communication on multipoint bus transmission lines, making it an ideal choice for networked, industrial control systems where high data integrity and signal quality are essential.

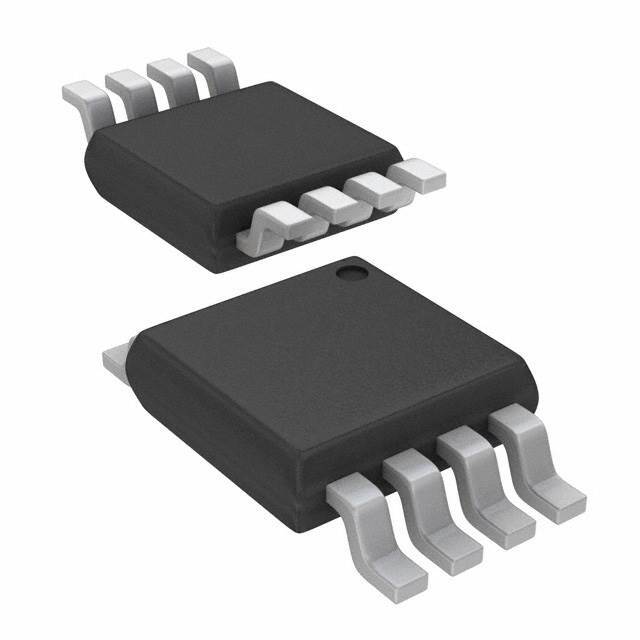

Encased in an 8-pin MSOP (DGK) package, this transceiver is compact and suitable for space-constrained applications. It operates over a wide temperature range of -40°C to 125°C, ensuring reliable performance in extreme environments. The SN65HVD72DGKR is designed for single-ended bus transmission at rates up to 20 Mbps, combining a high-speed differential driver and receiver with low-power consumption, typically just 1.65 mA when active.

Key Features:

• Bus-Pin ESD Protection: This device offers an impressive Electrostatic Discharge (ESD) protection for the bus pins, exceeding the IEC 61000-4-2 (Level 4) standards.
• Wide Supply Range: The SN65HVD72DGKR operates with a supply voltage range from 3.3 V to 5 V, providing design flexibility for various system voltages.
• Failsafe Receiver: It incorporates a failsafe receiver which ensures a logic-high output when the bus is open, shorted, or idle, enhancing the safety and robustness of the communication system.
• Thermal Shutdown Protection: The device includes thermal shutdown protection, which prevents damage from excessive power dissipation and maintains the integrity of the transceiver.

Applications:

The SN65HVD72DGKR is widely used in industrial automation, building automation, and other applications that require high-speed, bidirectional data communication with robust noise performance. Its enhanced features make it a go-to solution for:

• Industrial field buses
• Factory automation and process control systems
• Building management systems
• Networked security systems
• Data acquisition systems

With its combination of speed, reliability, and protective features, the SN65HVD72DGKR by Texas Instruments stands out as a superior choice for professionals seeking a high-quality RS-485/RS-422 transceiver.
