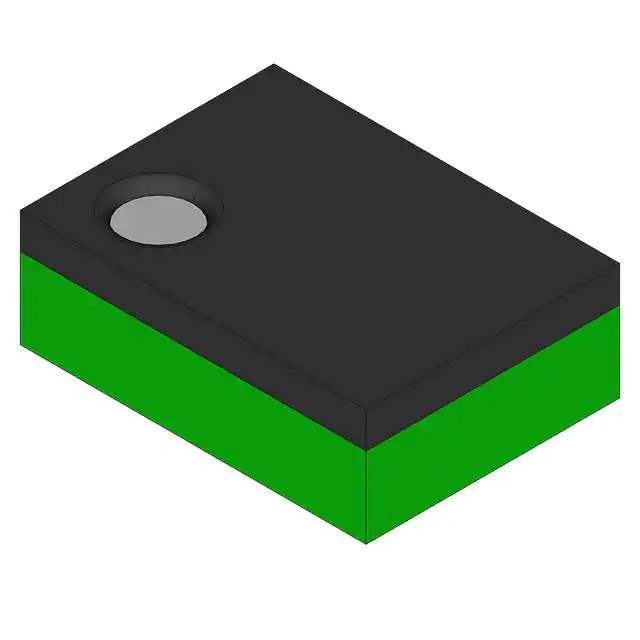

The SN74AUC1G19YZPRB is a high-performance, single 1-of-3 decoder/demultiplexer from Texas Instruments, designed to operate with a wide range of power supplies while maintaining excellent power efficiency and speed. This device is part of the advanced ultra-low-power Schottky (AUC) family, making it an ideal choice for battery-powered and portable applications where power conservation is paramount.

Key Features

• Low Power Consumption: The SN74AUC1G19YZPRB is optimized for low power consumption, drawing minimal current in standby mode and during operation, which extends battery life in portable devices.
• Wide Operating Voltage Range: This device supports a wide range of operating voltages from 0.8V to 2.5V, providing flexibility for use in various system power schemes.
• High-Speed Operation: Despite its low-power design, the SN74AUC1G19YZPRB ensures high-speed operation, which is crucial for high-performance digital systems.
• Multiple Package Options: Available in a variety of small-footprint packages, including the compact DSBGA package, this device is suitable for space-constrained applications.
• Robustness: The device is designed to withstand latch-up events, which enhances system reliability in the field.

Applications

The SN74AUC1G19YZPRB is versatile and can be used in a broad range of applications, including but not limited to:

• Mobile Phones
• Personal Digital Assistants (PDAs)
• Portable Media Players
• Notebook Computers
• Medical Instruments
• Low-Power Handheld Devices

Technical Specifications

The technical specifications of the SN74AUC1G19YZPRB provide insight into its performance and suitability for various applications:

• Operating Temperature Range: -40°C to 85°C
• Output Drive Capability: ±8 mA at 1.8 V
• Propagation Delay Time: Typically 2.9 ns at 2.3 V to 2.7 V
• 5-Pin Configuration

With its combination of low power consumption, high-speed operation, and robust performance, the SN74AUC1G19YZPRB from Texas Instruments is a reliable and efficient solution for decoding and demultiplexing applications in modern electronic systems.
