Product Overview: SN74AUP2G241YFPR from Texas Instruments

The SN74AUP2G241YFPR is a high-performance, dual-bit, single-pole/double-throw (SPDT) bus switch from Texas Instruments, a leader in semiconductor design and manufacturing. This switch is part of the advanced ultra-low power (AUP) series, which is designed to operate with a very low input and output leakage, making it an excellent choice for power-sensitive applications.

Engineered with a 0.8-V to 3.6-V V<sub>CC operating range, the SN74AUP2G241YFPR is optimized for low-voltage operation, ensuring compatibility with modern low-voltage microprocessors and microcontrollers. Its low-power consumption is further complemented by a very low static power consumption of less than 0.9 µA, minimizing the impact on battery life in portable devices.

The switch's high-speed switching characteristics (with t<sub>pd of 3.5 ns at 3.3 V) make it suitable for high-frequency signal switching, which is essential for data communication applications. Additionally, the SN74AUP2G241YFPR features a break-before-make switching mechanism, which prevents signal overlap and ensures clean, glitch-free signal routing.

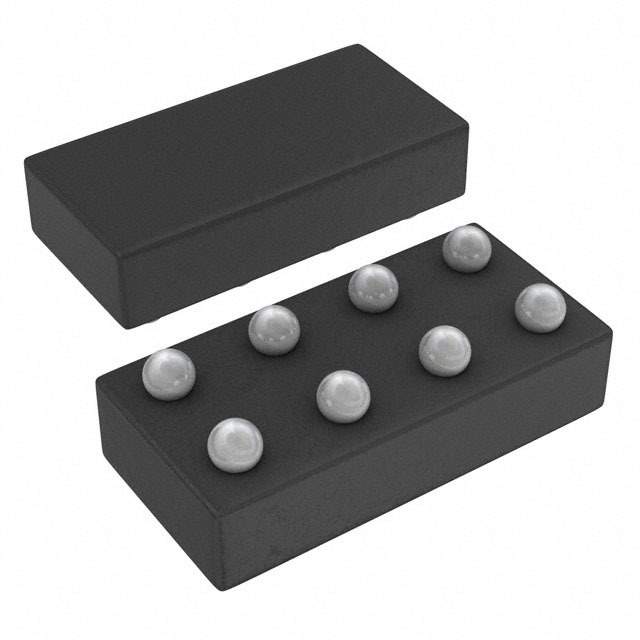

Packaged in a compact 8-pin DSBGA package (YFP), the SN74AUP2G241YFPR is designed for space-constrained applications, providing high functionality while occupying minimal board space. The small footprint and low profile of the DSBGA package make it an ideal choice for handheld devices, wearables, and other portable electronics where size is a critical factor.

The SN74AUP2G241YFPR also boasts robust ESD protection, with integrated diodes to protect against electrostatic discharge events, thereby enhancing the durability and reliability of the end product. Its wide operating temperature range of -40°C to 85°C allows for deployment in various environmental conditions, ensuring consistent performance across diverse applications.

In summary, the SN74AUP2G241YFPR from Texas Instruments is a versatile and efficient solution for designers looking to implement a high-speed, low-power bus switch in their systems. Its advanced features and compact packaging make it an attractive option for a wide range of electronic applications, including mobile devices, computing, and networking equipment.
