SN74AVC2T244EVM Evaluation Module from Texas Instruments

The SN74AVC2T244EVM is an evaluation module designed to demonstrate the functionality and versatility of Texas Instruments' SN74AVC2T244 dual-bit, dual-supply bus transceiver. This high-speed, low-power device is ideal for bidirectional level translation from any voltage between 0.8V and 3.6V and is optimized for use in voltage-level translation applications for interfacing between different logic levels.

The SN74AVC2T244 features two channels of bus transceivers with dual-input AND-gated enable. It allows for translation from a lower voltage to a higher voltage and vice versa, making it perfect for multi-voltage systems. The device's design ensures minimal propagation delay, providing high-speed operation that is essential for modern digital interfaces.

Key Features:

• Wide Range of Operating Voltages: Supports 1.2V to 3.3V on A side and 1.65V to 5.5V on B side, enabling flexible interfacing in mixed-voltage systems.
• Low Power Consumption: Optimized for low-power operation, which is critical for battery-powered and power-sensitive applications.
• High-Speed Data Transfer: Capable of transferring data at rates that satisfy the requirements of high-speed signal processing.
• Robust Design: Includes Ioff and power-up 3-state support to prevent backflow current and ensures the device is disabled during power up.

Applications:

• Level translation for interfacing devices operating at different voltage levels.
• Mobile phones, PDAs, and other portable devices where power efficiency is crucial.
• High-speed digital signal processing where signal integrity is a priority.

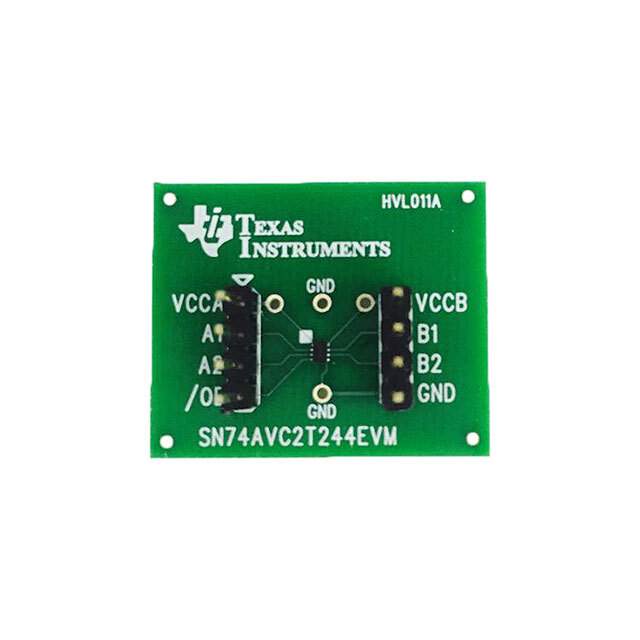

The SN74AVC2T244EVM provides a convenient platform for testing and evaluation, with easy access to all the signal pins of the transceiver. It is an invaluable tool for designers and engineers looking to implement the SN74AVC2T244 in their systems. By using this evaluation module, developers can rapidly prototype and test their designs, ensuring that they meet the necessary specifications for their applications.

Overall, the SN74AVC2T244EVM from Texas Instruments is an essential development asset for any project requiring reliable and efficient voltage-level translation.
