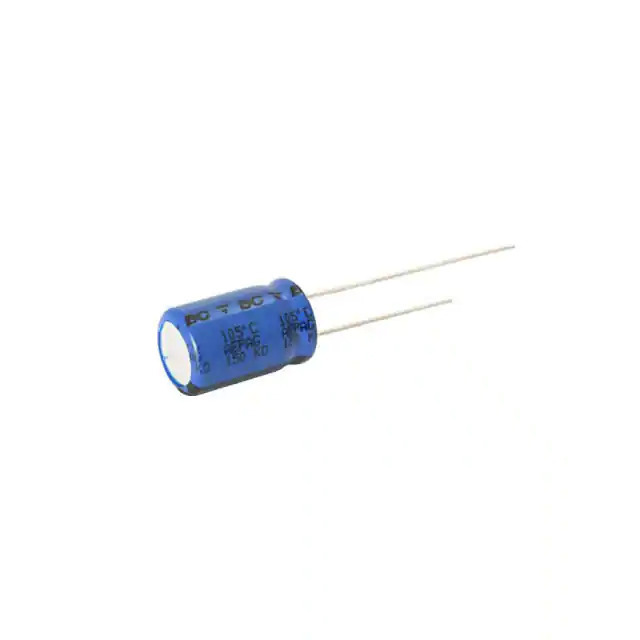

Same model may have multiple batches, images only for reference.

MAL217055102E3

Name: MAL217055102E3
Brand: Vishay
SKU: 1358215
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MAL217055102E3
Manufacturer	Vishay
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 16V RADIAL / 1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Datasheet	MAL217055102E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	170 RVZ
Package	Bulk
Product Status	Active
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	819 mA @ 100 Hz
Ripple Current @ High Frequency	1.26 A @ 100 kHz
Impedance	46 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358215-MAL217055102E3
Ultra Librarian 3D Model	Ultra Librarian MAL217055102E3 CAD Model

Description

The 1358215-MAL217055102E3 is an aluminum electrolytic capacitor from Vishay Beyschlag/Draloric/BC Components.

Series: 170 RVZ
Mounting Type: Through Hole
Capacitance: 1000 μF
Voltage Rating: 16V
Application: Automotive
Tolerance: ±20%
Temperature Range: -40°C to 105°C
Package/Case: Radial, Can
Lead Spacing: 0.197" (5.00mm)
HTSUS Code: 8532.22.0020
ECCN: EAR99
