Product Overview: SN74HC4020PW

The SN74HC4020PW is a high-performance, 14-stage binary counter integrated circuit (IC) from Texas Instruments, renowned for its reliability and versatility. This advanced technology chip is part of the 74HC series, which is well-regarded for its high-speed CMOS logic family. The SN74HC4020PW is designed to operate with a supply voltage ranging from 2V to 6V, making it suitable for a variety of applications that require low power consumption and a wide operating voltage range.

Key Features

• Count Sequence: The device features a 14-stage ripple-carry binary counter, which can perform counting operations with high precision and speed.
• Operating Voltage: It operates efficiently across a voltage range of 2V to 6V, providing designers with flexibility in different system voltages.
• Output Current: The SN74HC4020PW has a typical output drive capability of ±4 mA at 5V, which is suitable for driving LEDs and other low-power devices.
• Frequency: It is capable of handling high-frequency input signals, making it ideal for timing applications and frequency dividers.

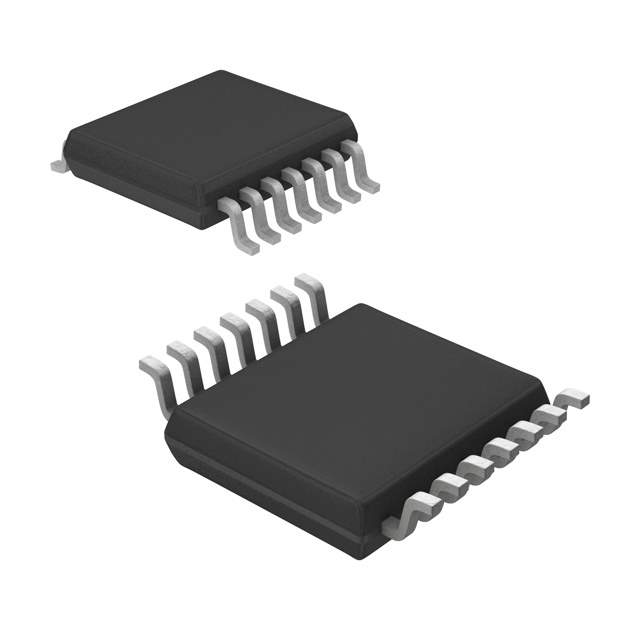

• Package: The IC comes in a TSSOP (Thin Shrink Small Outline Package) with 16 pins, providing a compact footprint for space-constrained applications.
• Temperature Range: The operating temperature range of -40°C to 85°C ensures that the device can perform reliably in a variety of environmental conditions.

Applications

The SN74HC4020PW is commonly used in a broad array of electronic applications, including:

• Timers and counters
• Frequency dividers
• Time-delay circuits
• Real-time clocks
• Sequential state machines

Quality and Support

Texas Instruments provides extensive technical support and a comprehensive set of resources for the SN74HC4020PW, including datasheets, application notes, and design tools. With TI's commitment to quality, customers can expect a product that meets the highest industry standards for performance and reliability.
