SN74HC4020PWT 14-Stage Binary Counter from Texas Instruments

The SN74HC4020PWT is a high-performance, 14-stage binary counter designed and manufactured by Texas Instruments (TI), a leader in semiconductor solutions. This integrated circuit is part of the HC family, which is known for its high-speed CMOS technology. The SN74HC4020PWT is particularly suitable for a wide range of counting applications where low power consumption and stable operation are essential.

This device features a series of 14 flip-flops with an output from each stage. It counts pulses and provides a binary count from the Q0 to Q13 outputs. The counter advances on the falling edge of the input clock signal, which allows for precise timing and control over counting sequences. The clear function is synchronous, meaning that the counter can be reset to zero on a high level at the CLEAR input when the clock input is at a low level.

The SN74HC4020PWT operates over a broad voltage range from 2V to 6V and offers features that make it versatile for a variety of electronic applications. These include its wide operating temperature range and the ability to drive up to 10 LS-TTL loads. This makes the counter suitable for interfacing with other logic families and ensures reliable performance in different environmental conditions.

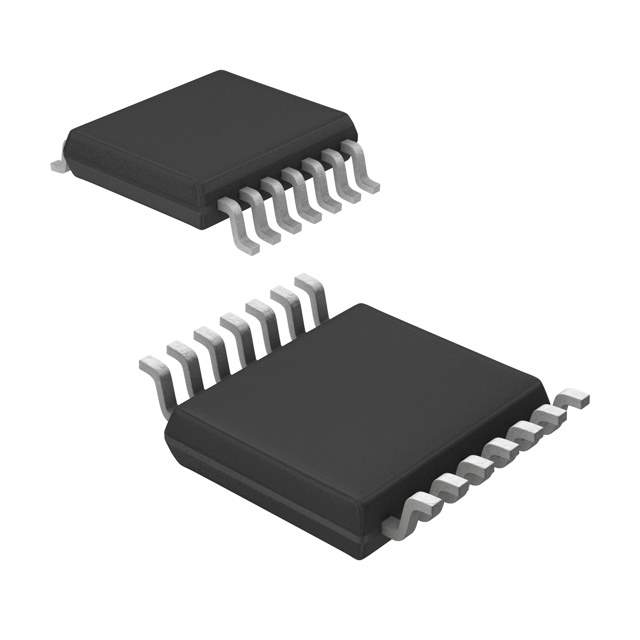

Housed in a TSSOP (Thin Shrink Small Outline Package) with 14 pins, the SN74HC4020PWT is designed for space-constrained applications. Its compact footprint allows for efficient use of PCB space, making it an excellent choice for portable and compact electronic systems.

Applications for this binary counter include time delay circuits, counter control logic, frequency dividers, and other sequential logic operations. Its robust design ensures that it can be used in various industrial, commercial, and consumer products, where long-term reliability is required.

Overall, the SN74HC4020PWT from Texas Instruments is a versatile and reliable component that offers the performance and quality expected from a leading semiconductor manufacturer. Its combination of features makes it an invaluable part of any electronic designer's toolkit.
