The SN74HCS32QBQARQ1 from Texas Instruments is a high-quality, automotive-grade integrated circuit designed to provide reliable logic OR functions in a variety of electronic applications. This quad 2-input positive-OR gate is part of the 74HCS family, which is known for its low-power consumption and high-speed operation, making it an ideal choice for automotive and industrial environments where performance and efficiency are paramount.

Key Features:

• Logic Type: OR Gate
• Number of Circuits: 4
• Inputs per Circuit: 2
• Output Type: Standard
• Supply Voltage: 2 V to 6 V
• Operating Temperature: -40°C to +125°C
• Mounting Type: Surface Mount
• Package / Case: 14-VQFN (3.5x3.5)
• Logic Level - Low: 0.8 V (Max) at Vcc = 4.5 V
• Logic Level - High: 2 V (Min) at Vcc = 4.5 V

This device boasts a wide operating voltage range, allowing it to be used in systems with different power levels without the need for additional level shifting. It is designed for use in 5V, 3.3V, and lower voltage applications, providing the flexibility needed for modern automotive electronics.

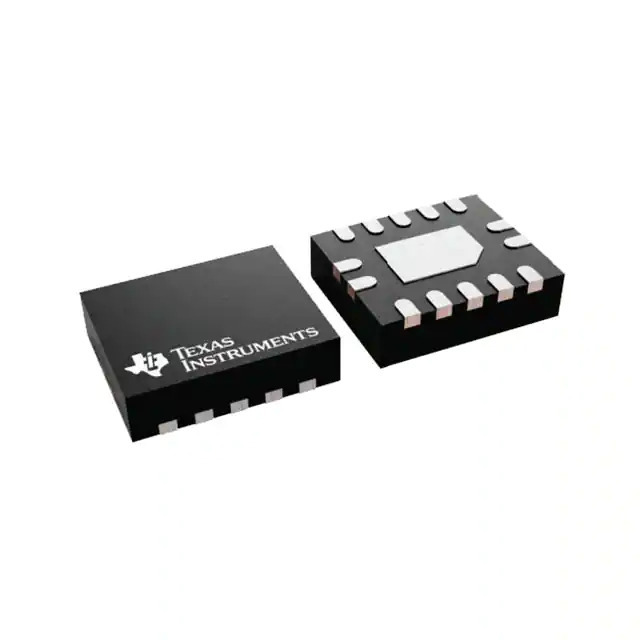

The SN74HCS32QBQARQ1 comes in a compact 14-VQFN package, ensuring a small footprint on printed circuit boards, which is critical in space-constrained automotive applications. Its surface-mount design allows for efficient assembly and integration into various electronic systems.

With its extended temperature range, the SN74HCS32QBQARQ1 is capable of operating in harsh environments, ensuring consistent performance even under extreme conditions. This makes it particularly suitable for under-the-hood applications, as well as other automotive systems that require high reliability.

Whether you are designing an engine control unit, a body electronics module, or an infotainment system, the SN74HCS32QBQARQ1 from Texas Instruments provides the logic capabilities you need with the robustness and reliability that automotive applications demand.
