The SN74LS04DB from Texas Instruments is a high-performance hex inverter integrated circuit, designed for general-purpose logic operations. This device features six independent inverters in a single package, making it an efficient solution for a wide range of applications in digital electronics.

Key Features

• Logic Type: The SN74LS04DB is a hex inverter, meaning it contains six inverters, each capable of inverting the input signal presented to it.
• Supply Voltage: It operates at a nominal voltage of 5V, which is common for LS (Low-power Schottky) technology, providing a good balance between speed and power consumption.
• Operating Temperature: This device is designed to function over a wide range of ambient temperatures, typically from 0°C to 70°C, making it suitable for commercial-grade applications.

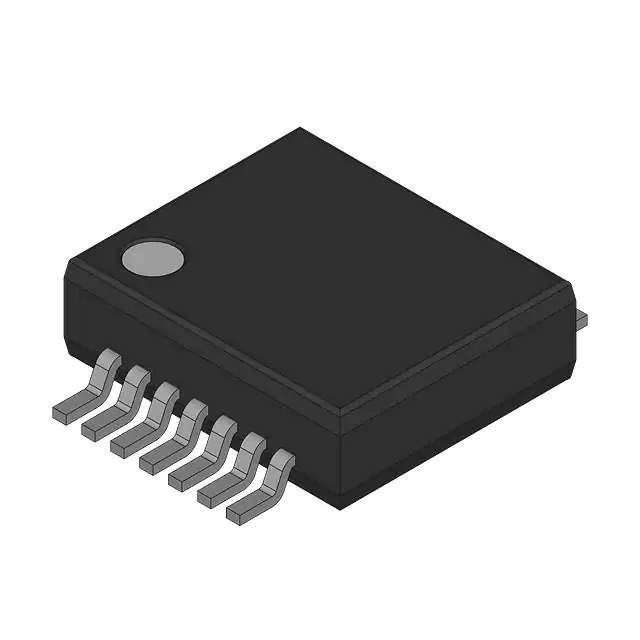

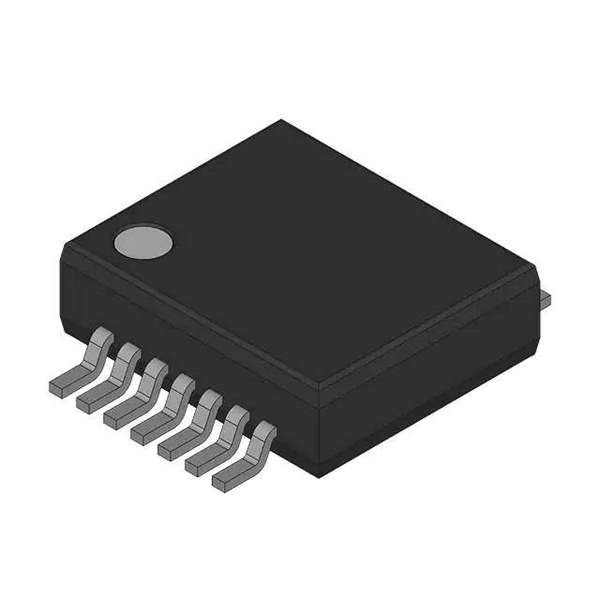

• Package: The SN74LS04DB comes in a SSOP (Shrink Small Outline Package), which is known for its small footprint and suitability for space-constrained applications.
• Technology: It is built using Low-power Schottky technology, which ensures low power dissipation while maintaining high-speed operation.

Applications

The versatility of the SN74LS04DB allows it to be used in various digital circuits, including:

• Logic gate circuits
• Signal processing
• Oscillators
• Pulse shapers
• High-speed computing applications

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability. The SN74LS04DB is no exception, as it undergoes rigorous testing and quality assurance measures to ensure it meets the industry standards for performance and longevity.

Support and Resources

For designers and engineers, Texas Instruments provides extensive support and resources, including datasheets, application notes, and design tools. This ensures the integration of the SN74LS04DB into your projects is as seamless and efficient as possible.
