Product Overview: SN74LVC1G02DCK3

The SN74LVC1G02DCK3 is a high-performance, single 2-input positive-NOR gate integrated circuit (IC) from Texas Instruments (TI), designed for use in a wide range of digital applications. This device is part of the 74LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage systems.

Key Features:

• Operating Voltage: The SN74LVC1G02DCK3 operates at a voltage range of 1.65V to 5.5V, making it ideal for interfacing with both 3.3V and 5V logic levels without the need for level shifters.
• Logic Type: This IC is a NOR gate, which outputs a logic low when any of its inputs are high, and outputs a logic high only when all of its inputs are low.
• Output Drive Capability: It can drive up to 32 mA at the output, allowing it to control LEDs or other low-power devices directly.
• High-Speed Operation: With a typical propagation delay of just 3.4 ns at 3.3V, the SN74LVC1G02DCK3 is suitable for high-speed applications.
• Low Power Consumption: The device features a low static power consumption and an even lower dynamic power consumption due to its CMOS technology.

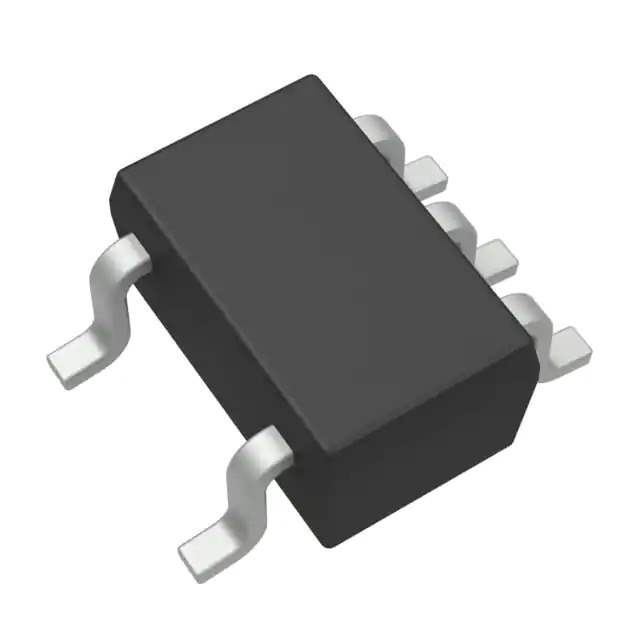

• SC70 Packaging: Encased in an ultra-small SC70 6-pin package, the SN74LVC1G02DCK3 is designed for space-constrained applications.

Applications:

The versatility of the SN74LVC1G02DCK3 allows it to be used in various applications, including:

• Servers
• Networking equipment
• Personal electronics
• Embedded systems
• Signal processing
• Logic level translation

Quality and Reliability:

As with all Texas Instruments products, the SN74LVC1G02DCK3 is manufactured to the highest quality standards. It features over-temperature protection and is characterized for operation from -40°C to 85°C, ensuring reliable performance in a variety of environmental conditions.

Conclusion:

The SN74LVC1G02DCK3 from Texas Instruments is a compact, high-speed, and low-power NOR gate IC that is perfect for designers looking to optimize their digital systems. Its wide operating voltage range and high output drive capability make it a flexible choice for modern electronic applications.
