SN74LVC1G04DCK3 - Texas Instruments Single Inverter Gate

The SN74LVC1G04DCK3 is a high-performance, single inverter gate designed by Texas Instruments, renowned for its commitment to precision and durability in the semiconductor industry. This tiny but mighty device is part of the LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage system environments.

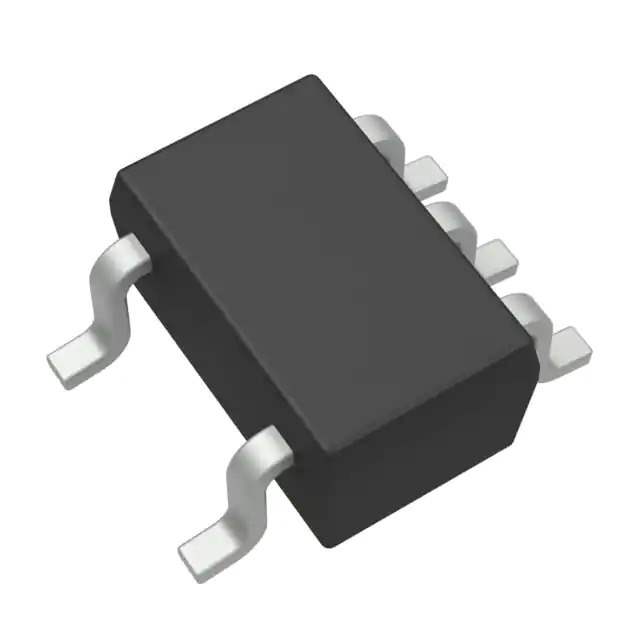

Encased in a 5-pin SC70 package, the SN74LVC1G04DCK3 is designed to handle a supply voltage range of 1.65V to 5.5V, making it highly versatile for various applications. This range allows the device to be used in both traditional 5V systems and newer, low-power 3.3V systems, providing a bridge in mixed-voltage environments without the need for level shifters.

The device boasts a high drive output capability while maintaining low static and dynamic power consumption. Its input is compatible with a variety of voltage levels, ensuring that it can be interfaced with other logic families with ease. The SN74LVC1G04DCK3 is also characterized by its Schmitt-trigger action at all inputs, which makes the circuit tolerant to slower input rise and fall times. This feature is particularly useful in applications where noise is present on the input signal.

The SN74LVC1G04DCK3 is not only functional but also practical. Its small size is perfect for space-constrained applications, and it is designed for easy implementation into a wide range of electronic systems. From consumer electronics to industrial automation, this inverter gate is a reliable choice for designers looking to build efficient and compact circuits.

Furthermore, Texas Instruments ensures that the SN74LVC1G04DCK3 meets stringent quality standards, with robust ESD protection and a wide operating temperature range of -40°C to +125°C, making it suitable for industrial applications. With its combination of performance, power efficiency, and design flexibility, the SN74LVC1G04DCK3 from Texas Instruments stands out as an excellent choice for your digital logic circuit needs.
