Overview of SN74LVC1G123DCUT

The SN74LVC1G123DCUT is a versatile single monostable multivibrator, also known as a one-shot timer, from Texas Instruments. This integrated circuit (IC) is designed for 1.65-V to 5.5-V VCC operation, making it suitable for interfacing with both 3.3-V and 5-V systems. The device is part of the LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage system environments.

Key Features

• Wide Supply Voltage Range: Operates from 1.65 V to 5.5 V, accommodating a variety of logic levels and system voltages.
• High-Speed Operation: The SN74LVC1G123DCUT is capable of high-speed operation, with typical propagation delays significantly lower than those of standard multivibrators.
• Low Power Consumption: This device is designed for low power consumption, making it an excellent choice for battery-powered and power-sensitive applications.
• Glitch-Free Output: The output is glitch-free upon power-up, ensuring reliable operation during system initialization.
• Retriggerable: The one-shot timer is retriggerable, allowing for pulse width extension or rate control when used in various timing applications.

Applications

The SN74LVC1G123DCUT is a versatile component suitable for a wide range of applications, including:

• Timing circuits
• Pulse shaping
• Missing pulse detection
• Debouncing for switches and buttons
• Sequential logic implementation

Packaging and Quality

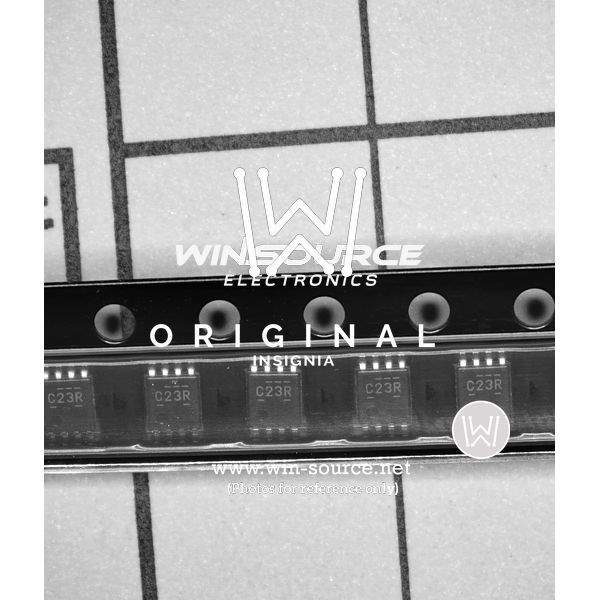

The device is available in a small-outline transistor (SOT) package, specifically the DCK package, which is a 6-pin SC70. This compact form factor makes it ideal for space-constrained applications. Texas Instruments is known for its commitment to quality, and the SN74LVC1G123DCUT is no exception, adhering to stringent quality control standards.

Conclusion

With its wide supply voltage range, high-speed operation, and low power consumption, the SN74LVC1G123DCUT from Texas Instruments is a reliable and efficient solution for designers looking to implement precise timing functions in their electronic systems. Its small package size and robust feature set make it a highly adaptable component for both industrial and consumer applications.
