The SN74LVC245ADGVR from Texas Instruments is a state-of-the-art octal bus transceiver designed with the modern electronics enthusiast and professional in mind. This device is built with Low-Voltage CMOS technology and is part of the LVC family, which stands for Low-Voltage CMOS. It is specifically engineered to operate with a 3.3V power supply while maintaining 5V tolerant inputs, making it perfect for interfacing between systems operating at different voltage levels.

Key Features

• Bi-Directional Interface: The SN74LVC245ADGVR facilitates bi-directional communication between two buses, allowing for efficient data transfer and signal processing.
• Low Power Consumption: With its Low-Voltage CMOS design, the device consumes minimal power, which is ideal for battery-operated equipment and power-sensitive applications.
• High Drive: The device can source or sink up to 24 mA of current, providing robust drive capabilities for connected peripherals.
• Wide Operating Voltage Range: It operates within a voltage range of 2.7V to 3.6V, ensuring compatibility with various low-voltage systems.
• 5V Tolerant Inputs: Inputs can tolerate up to 5V, even when the device is powered down, which allows for mixed-voltage system integration without the need for additional level shifters.
• High-Speed Data Transfer: The transceiver is capable of supporting high-speed data transfer, which is critical for performance in communication systems and data processing units.

Applications

The versatility of the SN74LVC245ADGVR makes it suitable for a broad range of applications, including:

• Telecommunications
• Computers and Computer Peripherals
• Data Storage Devices
• Consumer Electronics
• Industrial Control Systems

Packaging and Quality

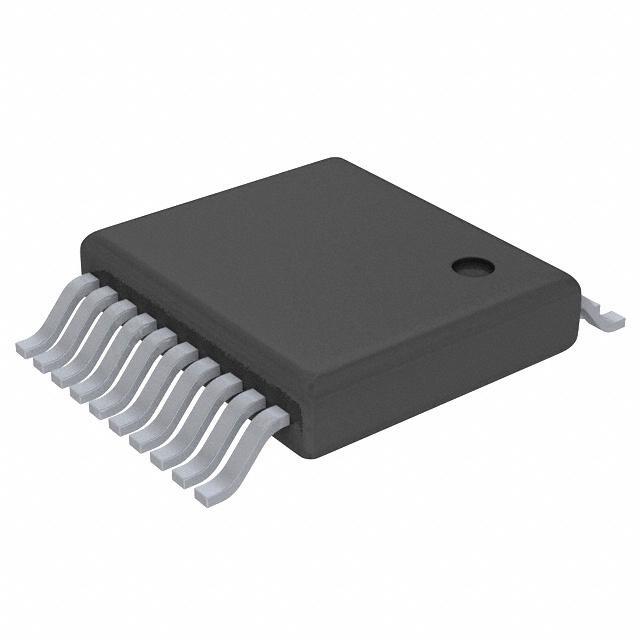

This device is offered in a compact TVSOP (Thin Shrink Small Outline Package) form factor, designated by the DGVR suffix. The small footprint allows for high-density mounting and is ideal for space-constrained applications. As with all Texas Instruments products, the SN74LVC245ADGVR is manufactured to the highest quality standards, ensuring reliability and performance in even the most demanding environments.
