The SN74LVC245ADW is a versatile octal bus transceiver designed by Texas Instruments, which functions as an essential component for facilitating bidirectional communication between two buses. This integrated circuit is part of the LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage systems.

Key Features:

• Wide Operating Voltage Range: The SN74LVC245ADW operates at a voltage range of 2.7V to 3.6V, making it ideal for interfacing with low-voltage logic without the need for level shifting.
• High Drive Capacity: With the ability to source and sink up to 24 mA, this transceiver can drive multiple loads or long bus lines with ease.
• Direction Control: The direction of data flow is controlled by the DIR input, allowing for flexible data routing between buses.
• Output Enable (OE) Feature: The OE input can disable the outputs, placing them in a high-impedance state, which is particularly useful for shared data buses where multiple transceivers may be connected.
• Low Power Consumption: The device features a low static power consumption, and the use of advanced CMOS technology ensures minimal power draw during operation.
• Bus-Hold Function: Inputs have a bus-hold feature, which prevents floating inputs and eliminates the need for external pull-up or pull-down resistors.
• Support for Mixed-Mode Signal Operation: The SN74LVC245ADW can handle 5V tolerant inputs, enabling it to interface with higher voltage logic levels without damage.

Applications:

The SN74LVC245ADW is designed for a broad range of applications, including:

• Communication systems
• Data transfer between different voltage domains
• Bus interface and buffer applications
• Memory interfacing
• Microprocessor or microcontroller interface

Package and Quality:

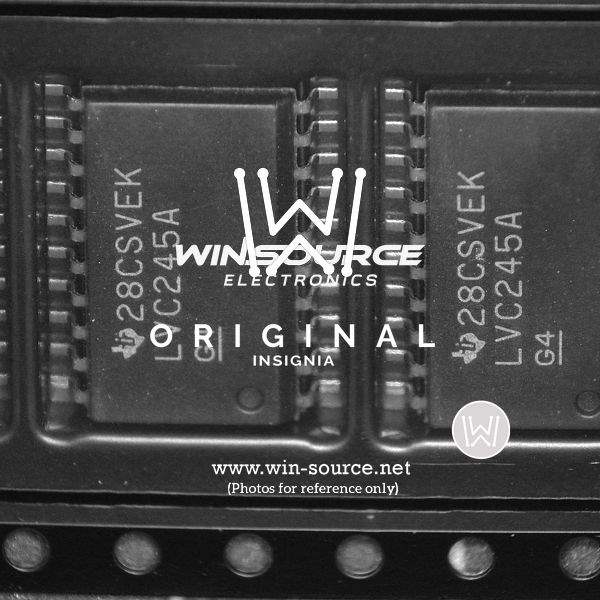

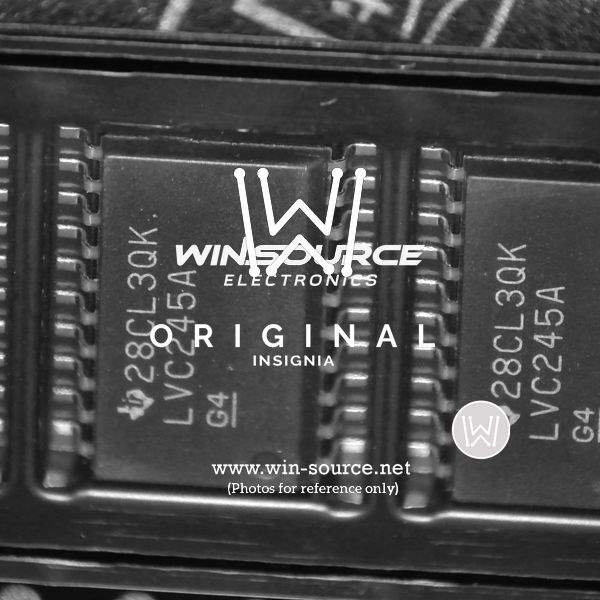

The device is offered in a wide-body SOIC (DW) 20-pin package, ensuring compatibility with standard surface-mount assembly processes. Texas Instruments is committed to high-quality manufacturing and reliability, providing customers with a robust and dependable component for their electronic designs.
