SN74LVC4245ADW Octal Bus Transceiver

The SN74LVC4245ADW from Texas Instruments is a versatile octal bus transceiver designed to address the needs of high-speed bidirectional communication between data buses. This integrated circuit is part of the LVC family, which stands for Low-Voltage CMOS, indicating its compatibility with low-voltage operation and reduced power consumption.

One of the key features of the SN74LVC4245ADW is its dual-supply voltage capability, which allows for translation between a 3.3V bus and a 5V bus, making it ideal for interfacing between systems operating at different logic levels. This feature is particularly useful in mixed-voltage digital environments, where bridging the gap between different logic families is required.

The device consists of eight non-inverting bus transceivers with 3-state outputs. The direction of data flow is determined by the DIR input, while the output enable (OE) input controls the transceiver function. When OE is low, the device transmits data from the A bus to the B bus or vice versa, depending on the state of DIR. When OE is high, the outputs are in a high-impedance state, effectively isolating the buses.

With a wide operating voltage range of 2.7V to 3.6V on the A side and 4.5V to 5.5V on the B side, the SN74LVC4245ADW supports mixed-mode signal operation and ensures compatibility with TTL logic levels. Additionally, it provides latch-up performance that exceeds 250 mA per JESD 17, offering robustness in complex electronic systems.

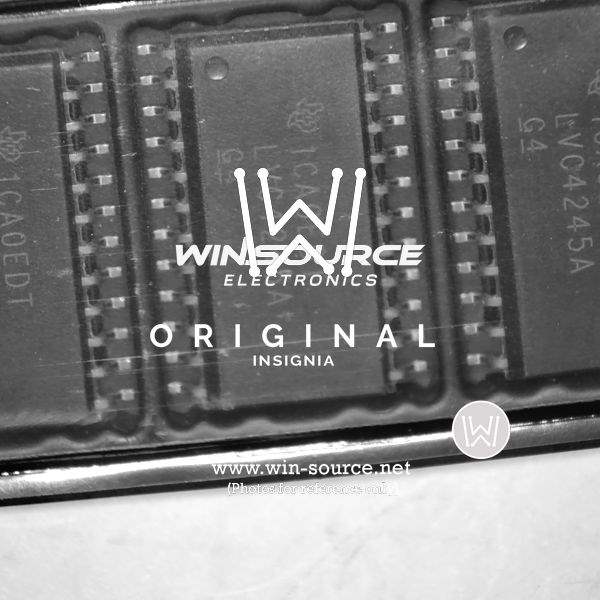

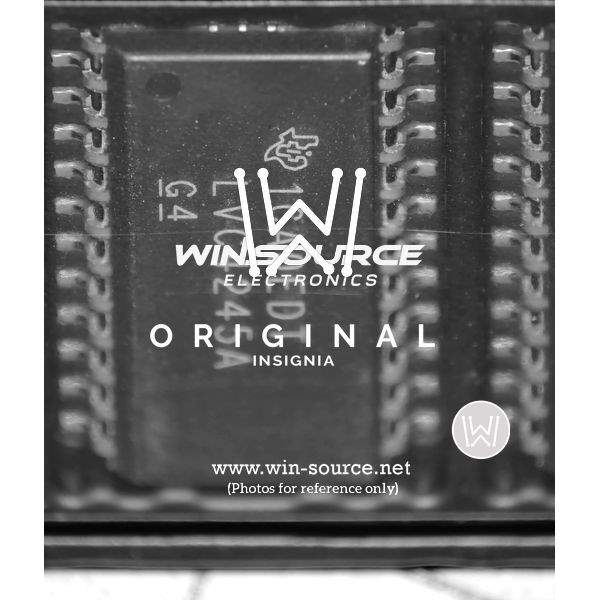

The SN74LVC4245ADW is supplied in a 24-pin wide-body SOIC package (DW suffix), which is suitable for surface-mount technology (SMT) and is designed for optimal heat dissipation and space-saving on PCBs. The device also offers a maximum data rate that is sufficient for many high-speed interfaces, ensuring reliable and fast data exchange between different voltage domains.

Overall, the SN74LVC4245ADW is a highly functional and reliable component for system designers who require a high-performance level-shifting solution in their digital applications. Its ability to interface between different logic levels, combined with its low-power operation, makes it a valuable asset in modern mixed-voltage digital systems.
