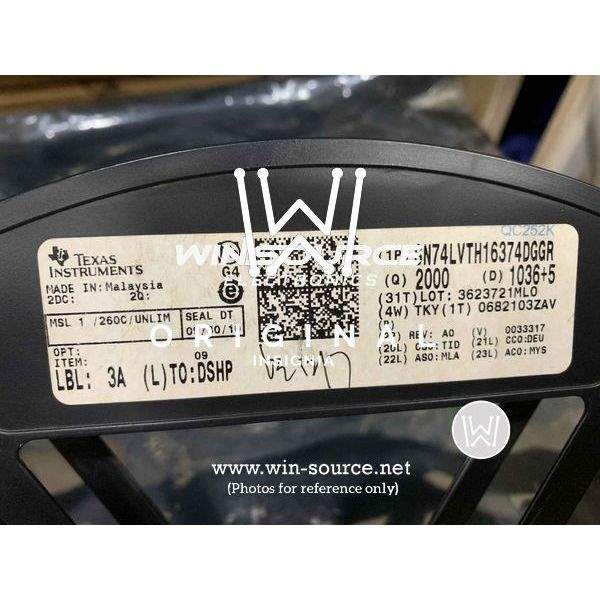

The SN74LVTH16374DGGRG4 is a high-performance, low-voltage 16-bit edge-triggered D-type flip-flop from Texas Instruments. It is designed for use in applications that require high-speed, low-power consumption, and reliable operation. This integrated circuit (IC) is part of the LVT family, which stands for Low-Voltage Technology, and it is specifically engineered to address the needs of modern digital systems.

Key Features

• Logic Type: 16-bit edge-triggered D-type flip-flops.
• Voltage Range: Operates at 2.5V to 3.6V, making it suitable for low-voltage applications.
• Output Current: Provides ±32 mA of output drive at 3.3V, which is suitable for driving high-capacitive loads while maintaining signal integrity.
• Speed: Fast propagation delays and output transition times, which are crucial for high-speed data processing and communication.
• 3-State Outputs: Features 3-state outputs, which can be placed in a high-impedance state, thus allowing for bus-oriented applications.
• Package: Comes in a TSSOP (Thin Shrink Small Outline Package) with 48 pins, identified by the DGGR suffix, which is ideal for space-constrained applications.

Applications

Due to its high-speed and low-power characteristics, the SN74LVTH16374DGGRG4 is highly versatile and can be used in a wide range of applications, including:

• Servers and networking equipment
• Telecommunications
• Data storage systems
• Personal computers and peripherals
• Industrial control systems

Quality and Reliability

Texas Instruments is known for its commitment to quality and reliability. The SN74LVTH16374DGGRG4 is no exception, as it is designed to meet or exceed the stringent requirements of the commercial and industrial markets. It is also supported by Texas Instruments' comprehensive technical documentation, making integration into your design a seamless process.
