Overview of TAS5424ATDKDQ1

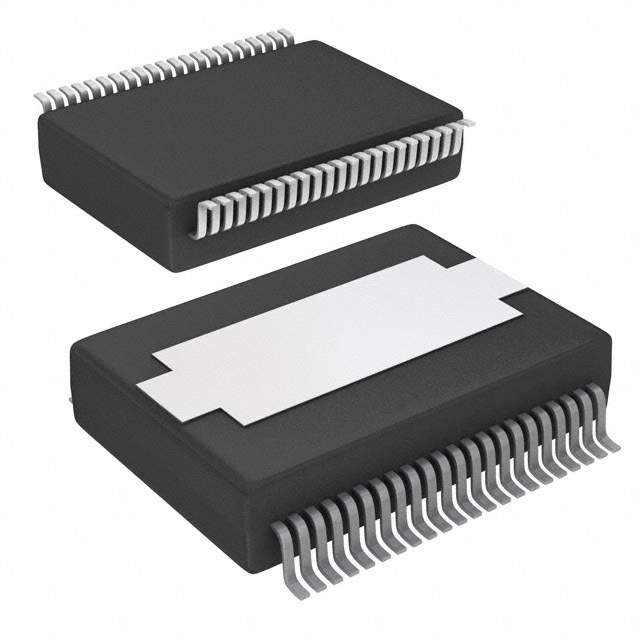

The TAS5424ATDKDQ1 is a high-performance audio amplifier from Texas Instruments designed for automotive audio applications. It is a part of TI's PurePath™ technology line, which is renowned for delivering high-quality sound with impressive power efficiency. This particular model is a four-channel digital amplifier that can drive speakers directly and is suitable for in-car entertainment systems, telematics, and navigation systems.

Key Features

• Output Power: The TAS5424ATDKDQ1 is capable of delivering up to 23W into 4 ohms per channel with low THD+N, ensuring loud and clear audio playback.
• Audio Quality: With a high signal-to-noise ratio (SNR) and low total harmonic distortion plus noise (THD+N), this amplifier produces crisp, clear audio, enhancing the listening experience.
• Efficiency: It features a class-D operation that significantly improves efficiency, reducing the heat generated and power wasted as compared to traditional class-AB amplifiers.
• Load Detection: The built-in load diagnostic functions for detecting and diagnosing speaker line faults are critical for ensuring the reliability and safety of the audio system.
• Flexibility: It supports a wide supply voltage range, making it versatile for various automotive environments and audio system configurations.
• Thermal Protection: The device includes an over-temperature protection mechanism that prevents damage from overheating.

Applications

The TAS5424ATDKDQ1 is ideal for a variety of automotive audio applications including:

• Factory-installed car audio systems
• Aftermarket car audio upgrades
• Automotive infotainment systems
• Navigation and telematics systems

Design Support

Designers can benefit from Texas Instruments' comprehensive support materials, which include detailed datasheets, application notes, and design tools. The TAS5424ATDKDQ1 is also supported by the TI E2E™ support community, a resource for technical support and collaboration with fellow engineers and TI experts.

In summary, the TAS5424ATDKDQ1 from Texas Instruments is a robust, efficient, and high-quality audio amplifier that is well-suited to meet the demanding requirements of modern automotive audio systems. Its combination of power, performance, and protection features make it an excellent choice for manufacturers looking to enhance the audio experience in vehicles.
