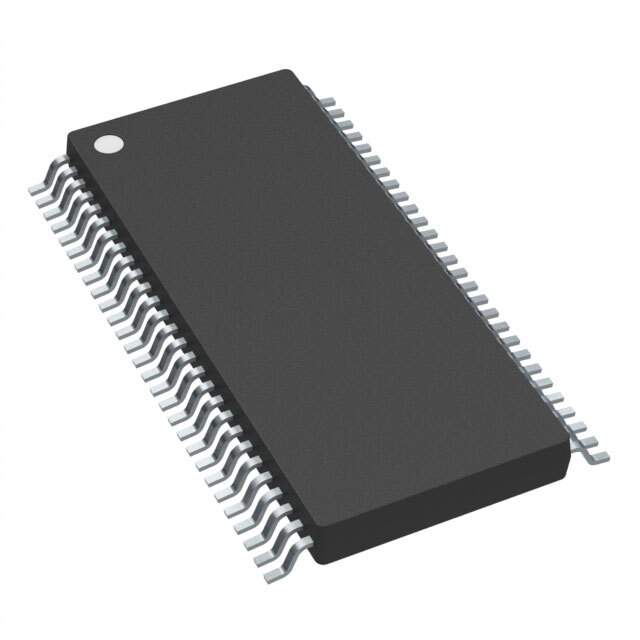

Product Overview: TAS5602DCARG4

The TAS5602DCARG4 is a high-performance, integrated stereo digital amplifier power stage designed by Texas Instruments (TI) to deliver premium audio quality in consumer electronics. This advanced audio solution is ideal for applications such as home theaters, desktop audio systems, and AV receivers, providing a powerful and efficient means of driving speakers with impeccable sound quality.

Key Features

• High Output Power: The TAS5602DCARG4 is capable of delivering up to 20W per channel into an 8-ohm load, ensuring robust audio performance for a wide range of speaker systems.
• High Efficiency: With an efficiency of up to 88%, this digital amplifier minimizes heat dissipation and energy loss, making it an environmentally friendly choice for energy-conscious consumers.
• Advanced Modulation: Utilizing TI's proprietary PurePath™ digital technology, the TAS5602DCARG4 offers a closed-loop architecture that ensures low distortion and high audio fidelity.
• Integrated Protection: The device features comprehensive protection circuits, including overcurrent, undervoltage, overtemperature, and DC detection, safeguarding the amplifier and speakers from potential damage.

Technical Specifications

• Supply Voltage: Operates over a wide supply voltage range from 10V to 26V, accommodating various power supply configurations.
• Signal-to-Noise Ratio (SNR): Offers an impressive SNR of 100dB, ensuring clear and noise-free audio reproduction.
• Thermal Performance: The integrated power stage is housed in a PowerPAD™ package, which provides excellent thermal performance and reduces the need for external heat sinking.
• Flexible I/O: Features configurable inputs that can be adapted to different audio source formats, including single-ended and differential inputs.

Applications

The TAS5602DCARG4's versatility and high-quality audio output make it suitable for a variety of audio applications, including:

• Home Theater Systems
• Multi-channel Audio Systems
• Powered Speakers
• Sound Bars
• AV Receivers

In summary, the TAS5602DCARG4 from Texas Instruments is a top-tier audio amplifier solution that offers a blend of power, efficiency, and sound quality, making it an excellent choice for audiophiles and OEMs alike looking to enhance their audio system's performance.
