The Texas Instruments TL594CPWR is a versatile and highly efficient Pulse Width Modulation (PWM) controller integrated circuit that has become a staple in the design of switch-mode power supplies. This powerful component is designed to offer precise control over power delivery, making it an ideal choice for a variety of applications, including computer systems, consumer electronics, and industrial equipment.

Key Features

• Flexible PWM Operations: The TL594CPWR provides users with a dual-channel, fixed-frequency PWM control, which allows for independent duty cycle adjustments. This feature is critical for achieving optimal power efficiency and performance in power supply circuits.
• Wide Operating Range: With an operating voltage range from 7V to 40V, this PWM controller can handle a broad spectrum of power applications. This flexibility ensures that it can be used in various systems without the need for additional voltage regulation components.
• Integrated Error Amplifiers: Two built-in error amplifiers with a common-mode voltage range from -0.3V to Vref make it easier to manage feedback and maintain output voltage stability, which is essential for reliable power supply operation.
• Oscillator Frequency Control: The device features an oscillator whose frequency can be controlled with external components, allowing designers to tailor the PWM frequency to the specific needs of their application.
• Under-Voltage Lockout (UVLO): The TL594CPWR includes a UVLO feature that ensures the controller is operational only when the supply voltage is sufficient, thereby protecting the system from low-voltage conditions.
• Thermal Shutdown: To prevent damage from overheating, the device is equipped with a thermal shutdown mechanism that disables PWM operations when excessive temperatures are detected.

Applications

The TL594CPWR is widely used in the design of DC-DC converters, AC-DC power supplies, offline converters, and Class-D switch-mode amplifiers. Its robust feature set and reliability make it a go-to choice for engineers looking to create efficient and stable power solutions.

Package and Availability

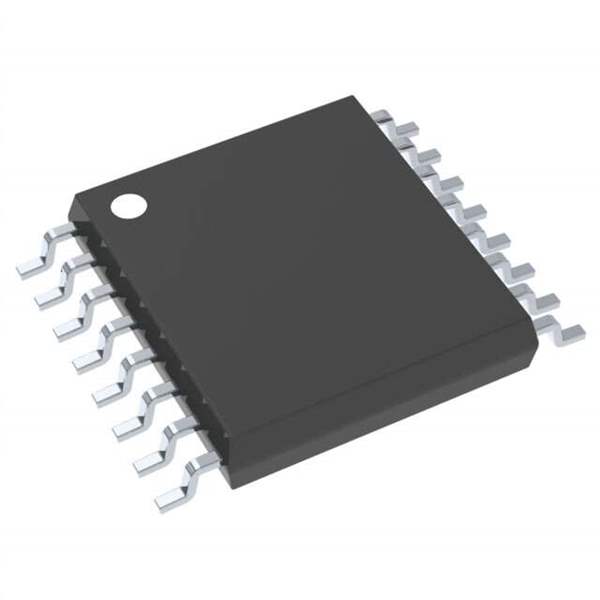

This component is available in a 16-pin TSSOP (Thin Shrink Small Outline Package) that is suitable for space-constrained applications. The TL594CPWR is part of Texas Instruments' commitment to providing high-quality and durable integrated circuits for the electronics industry.
