Product Overview: TL7705ACDR by Texas Instruments

The TL7705ACDR is a supply voltage supervisor designed and manufactured by Texas Instruments, a leader in semiconductor solutions. This integrated circuit (IC) is tailored to monitor the supply voltage of microprocessors (µPs) or other voltage-sensitive systems, ensuring proper operation during power-up, operation, and power-down sequences.

The TL7705ACDR provides a precise voltage reference and a comparator integrated into a single chip. This combination monitors the VCC line and maintains system integrity by asserting a reset signal whenever the supply voltage drops below a predetermined threshold. The reset signal remains asserted until the VCC supply voltage returns to an acceptable level and stabilizes for a predetermined period, ensuring the system has adequate power to operate reliably.

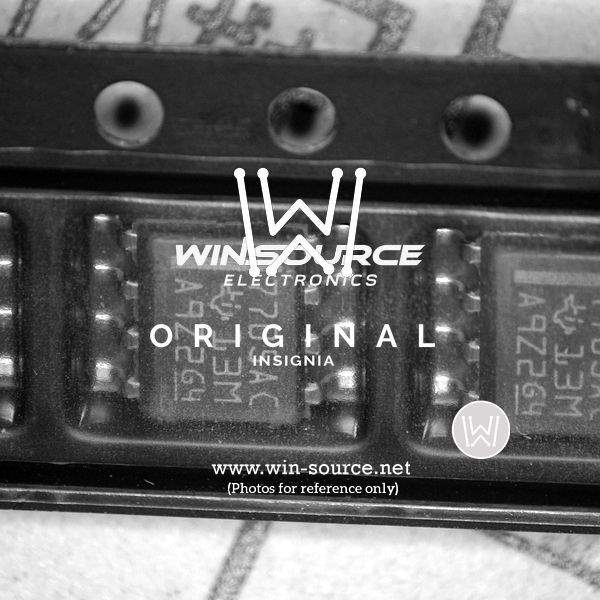

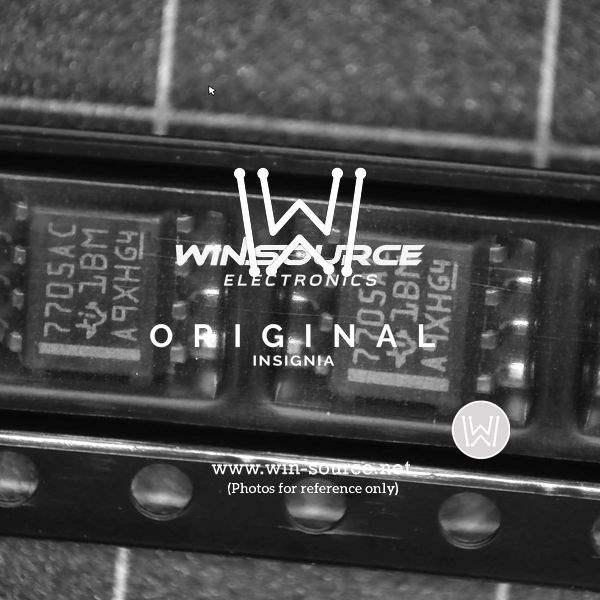

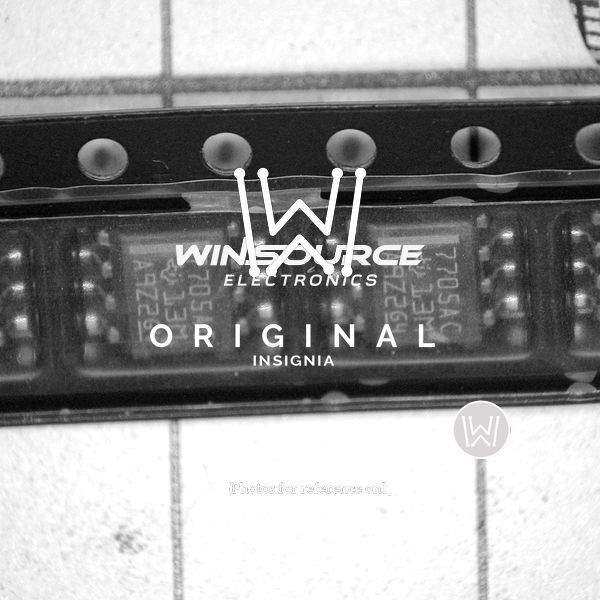

This device is offered in an 8-pin SOIC package, denoted by the 'CDR' suffix in its part number, which is suitable for surface-mount technology (SMT) and is known for its compact footprint. The TL7705ACDR operates over a wide range of supply voltages, from 4.5V to 18V, and features a low supply current, making it a highly efficient choice for power management tasks in a variety of electronic applications.

Key features of the TL7705ACDR include an adjustable reset threshold voltage, which allows designers to tailor the reset activation point to specific system requirements. It also offers a reset delay time that can be externally set by connecting a capacitor to the appropriate pin. This flexibility makes the TL7705ACDR a versatile component for managing power supplies in systems such as computers, controllers, and intelligent instruments.

In summary, the TL7705ACDR from Texas Instruments is a robust supply voltage supervisor that ensures system stability by providing a reliable reset signal during undervoltage conditions. Its adjustability, low power consumption, and small package size make it an excellent choice for safeguarding a wide range of electronic systems.
