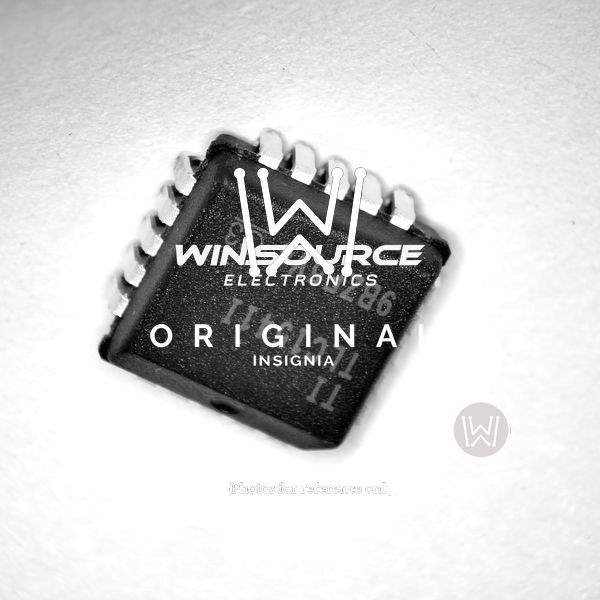

TLC1541IFN

Part No TLC1541IFN
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description 10-BIT ANALOG-TO-DIGITAL CONVERTER WITH SERIAL CONTROL AND 11 INPUTS | IC ADC 10BIT SAR 20PLCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube
Part Status Last Time Buy
Resolution 10
Sampling Rate (Per Second) 32k
Number of Inputs 11
Input Type Single Ended
Data Interface SPI
Configuration MUX-S/H-ADC
Number of A/D Converters 1
Architecture SAR
Reference Type External
Supply Voltage , Analog 5V
Supply Voltage , Digital 5V
Features Selectable Address
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 20-LCC
Supplier Device Package 20-PLCC (9x9)
Mounting Style SMD
Family Part Number TLC1541
Manufacturer Pack Quantity 46
MSL Level 1 (Unlimited)
Win Source Part Number 1268697-TLC1541IFN
Manufacturer Homepage www.ti.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TLC1541IFN CAD Model

Description

Texas Instruments TLC1541IFN Analog-to-Digital Converter

The Texas Instruments TLC1541IFN is a high-performance, 10-bit analog-to-digital converter (ADC) that combines a wide input range and high-speed performance with low-power consumption. Designed for a variety of applications, this versatile ADC is an ideal choice for designers looking for a reliable and efficient solution for data acquisition systems, instrumentation, and process control.

The TLC1541IFN features a 10-bit successive approximation register (SAR) architecture that provides a fast conversion time of just 21 microseconds. With its 32-kilohertz sampling rate, it is well-suited for real-time applications where quick data acquisition is crucial. The device operates over a wide single supply voltage range of 5V, making it compatible with many microcontrollers and digital systems.

This ADC offers an impressive input dynamic range by including an 11-channel multiplexer with a single-ended input configuration, which allows it to handle multiple signal inputs without the need for additional external components. This makes the TLC1541IFN highly versatile and simplifies system design by reducing the number of components required for multiplexing signals.

The TLC1541IFN also boasts a low power consumption of just 175 mW during operation and 1 µW in power-down mode, which is particularly advantageous for battery-powered and portable devices where power efficiency is critical. Additionally, its inherent low power dissipation helps prevent thermal issues and enhances system reliability.

For ease of integration, the TLC1541IFN comes in a 20-pin DIP (Dual In-line Package) format, which is widely used and accepted in the industry. It also includes an SPI-compatible serial interface for straightforward communication with microprocessors and DSPs (Digital Signal Processors). The device's built-in self-test capability allows for increased system reliability by enabling the testing of the ADC's functionality during operation.

Overall, the Texas Instruments TLC1541IFN ADC stands out for its combination of high speed, precision, and low power consumption, making it an excellent choice for engineers and designers looking to enhance their system's performance with a reliable and efficient data conversion solution.
