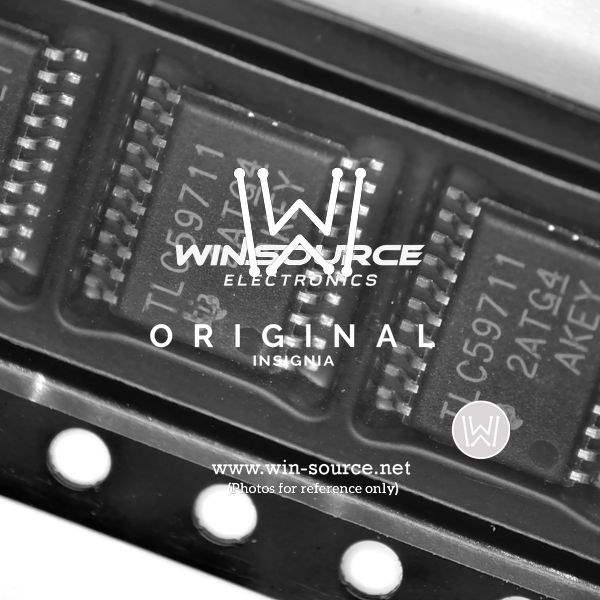

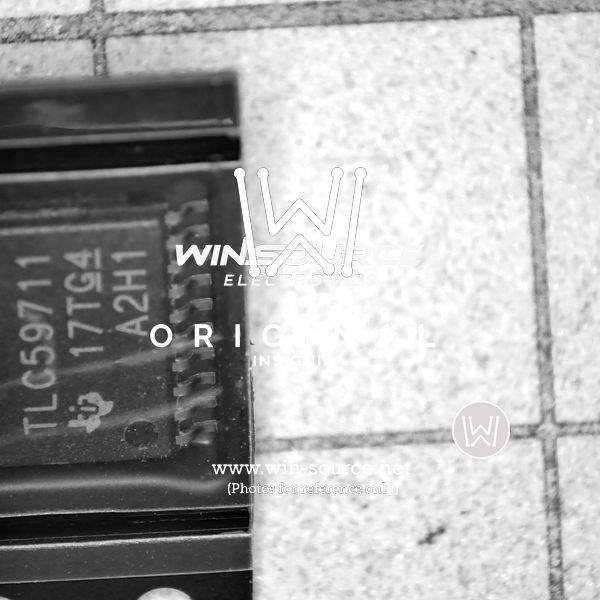

TLC59711PWPR

Part No TLC59711PWPR
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER LIN 60MA 20HTSSOP / 12-Channel, 16-Bit, Enhanced Spectrum PWM, RGB, LED Driver
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Texas Instruments
Packaging Reel
Type Linear
Topology Shift Register
Internal Switch(s) Yes
Number of Outputs 12
Voltage - Supply (Min) 3V
Voltage - Supply (Maximum) 5.5V
Voltage - Output 17V
Current - Output / Channel 60mA
Frequency 10MHz
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 20-PowerTSSOP
Supplier Device Package 20-HTSSOP
Part Number Series TLC59711
Manufacturer Pack Quantity 2,000
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809457-TLC59711PWPR
Ultra Librarian 3D Model Ultra Librarian TLC59711PWPR CAD Model

Description

The Texas Instruments TLC59711PWPR is a highly efficient, precision LED driver integrated circuit (IC) designed to meet the stringent requirements of advanced lighting solutions. Ideal for applications that demand high-quality color rendering and precise brightness control, this IC is perfect for architectural lighting, display backlighting, signage, and automotive lighting systems.

Key Features

  • 12-Channel Output: The TLC59711PWPR provides 12 individually adjustable constant current sink channels, allowing for fine control over multiple LEDs simultaneously.
  • Constant Current Range: Each channel can be programmed to sink up to 40 mA of constant current, with a maximum current capability of 120 mA for all channels.
  • Grayscale PWM Control: The device includes an internal grayscale PWM control that offers 4096 steps of brightness levels, enabling smooth and flicker-free dimming and color mixing capabilities.
  • Serial Interface: A two-wire, serial interface is available for communication, which supports data transfer rates up to 30 MHz, making it easy to interface with microcontrollers or other digital systems.
  • Voltage Supply Range: The IC operates on a supply voltage range of 3.0 V to 5.5 V, accommodating various power sources and systems.
  • Thermal Shutdown: An integrated thermal shutdown feature protects the IC from overheating, thereby enhancing system reliability.
  • Power-Save Mode: To reduce power consumption, a power-save mode is available, which is particularly useful for battery-powered applications.
  • Packaging: The TLC59711PWPR comes in a compact TSSOP (Thin Shrink Small Outline Package) with 16 pins, making it suitable for space-constrained applications.

Applications

The TLC59711PWPR's versatility and performance make it an ideal choice for a wide range of LED lighting applications. Its precise control and high channel count make it particularly well-suited for RGB and RGBW LED configurations, where color mixing and accurate color reproduction are essential.

Conclusion

With its robust feature set and flexible design, the Texas Instruments TLC59711PWPR LED driver is a top-tier solution for designers looking to enhance their LED lighting applications with reliability, efficiency, and precision.
