Products specifications

Categories Development Boards, Kits, Programmers
Manufacturer Texas Instruments
Main Purpose Interface, Serializer, Deserializer (SerDes)
Utilized IC / Part TLK2201
Supplied Contents Board(s)
Win Source Part Number 797018-TLK2201EVM
Popularity Medium
Supply and Demand Status Limited
Family Name TLK2201
Introduction Date June 01, 2000
ECCN EAR99
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian TLK2201EVM CAD Model

Description

Introducing the TLK2201EVM from Texas Instruments

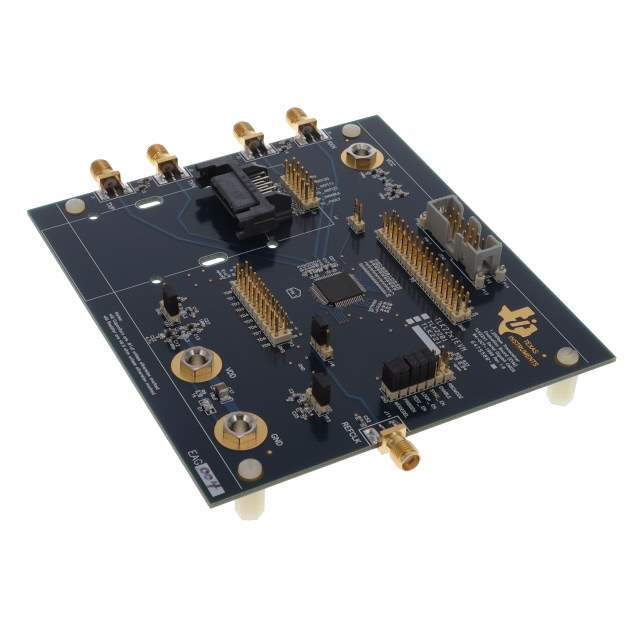

The TLK2201EVM is a comprehensive evaluation module designed by Texas Instruments to showcase the capabilities and robust features of the TLK2201, a high-speed, 1.6 Gbps to 2.5 Gbps serializer/deserializer (SerDes) transceiver. This evaluation module is an excellent tool for designers and engineers to test the functionalities and performance of the TLK2201 in a controlled environment before integrating it into larger systems.

The TLK2201EVM includes a feature-rich TLK2201 transceiver which operates over a wide frequency range and is compatible with various industry-standard protocols. It is designed to support high-speed data transmission over a differential backplane or cable, making it an ideal choice for applications in telecommunications, data communications, and networking infrastructure.

Key Features of the TLK2201EVM

  • High-Speed Performance: The TLK2201 supports data rates from 1.6 Gbps to 2.5 Gbps, ensuring high-speed data transfer for critical applications.
  • Flexible Interface: The EVM is equipped with a range of interfaces, including SMA connectors, allowing for easy connection to test equipment and other external devices.
  • Hot-Plug Capability: With built-in hot-plug protection, the TLK2201EVM can be safely connected and disconnected from live backplanes without risking damage to the transceiver or other system components.
  • Diagnostic Features: The module includes diagnostic LEDs and test points for convenient monitoring of the transceiver's operational status and signal integrity.
  • Power Supply Options: The TLK2201EVM can be powered through an external power supply, ensuring flexibility for different testing scenarios.

Engineers can utilize the TLK2201EVM to perform a variety of tests, including signal integrity analysis, protocol compliance testing, and system-level simulation. The module's user-friendly design and comprehensive documentation make it straightforward to set up and begin testing with minimal preparation.

Overall, the TLK2201EVM from Texas Instruments is a valuable asset for any development team looking to leverage the high-speed data transmission capabilities of the TLK2201 SerDes transceiver. Whether for research, development, or pre-deployment testing, this evaluation module provides a reliable platform for assessing performance and ensuring successful integration into final product designs.
