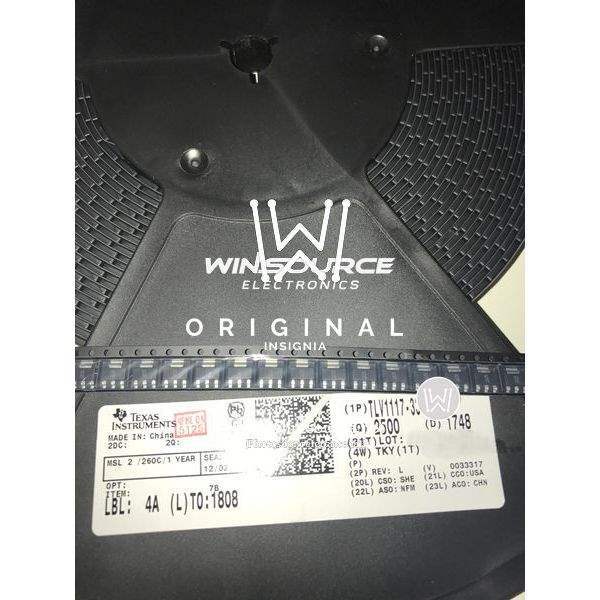

Overview of TLV1117-33IDCYRG3

The TLV1117-33IDCYRG3 is a low-dropout (LDO) voltage regulator from Texas Instruments, designed to provide a fixed output of 3.3V with a maximum output current of 800mA. This regulator is suitable for a variety of applications, from consumer electronics to industrial control systems, where a stable and reliable power supply is necessary.

Key Features

• Output Voltage: The device provides a precise 3.3V output, which is essential for powering sensitive electronic components that require a stable voltage supply.
• Current Capacity: Capable of delivering up to 800mA, this LDO regulator can support a range of devices and circuits, making it a versatile choice for different power requirements.
• Low Dropout: With a low dropout performance, the TLV1117-33IDCYRG3 ensures efficient operation even when the input voltage is close to the output voltage, which is beneficial for battery-powered applications.
• Thermal and Overcurrent Protection: The device includes built-in thermal shutdown and overcurrent protection features that safeguard the regulator and the downstream components from potential damage due to excessive heat or current.
• Adjustable Versions: While this model provides a fixed 3.3V, Texas Instruments also offers adjustable versions for applications requiring a custom voltage setting.

Package and Reliability

The TLV1117-33IDCYRG3 is available in a compact SOT-223 package, which is suitable for space-constrained applications. The regulator's robust design ensures reliable operation over a wide temperature range, making it an excellent choice for both commercial and industrial environments.

Applications

This voltage regulator can be used in a variety of applications, including but not limited to:

• Consumer Electronics: Powering devices such as portable media players, digital cameras, and handheld gaming consoles.
• Industrial Control Systems: Providing stable voltage for sensors, PLCs, and other control circuitry.
• Telecommunications: Supplying power to RF devices, modems, and other communication equipment.
• Computing Devices: Serving as a power source for memory, microcontrollers, and other digital circuits.

The TLV1117-33IDCYRG3 is a reliable and efficient solution for applications requiring a fixed 3.3V power supply with moderate current demands, offering protection features and a compact form factor to meet the needs of a wide array of electronic systems.
