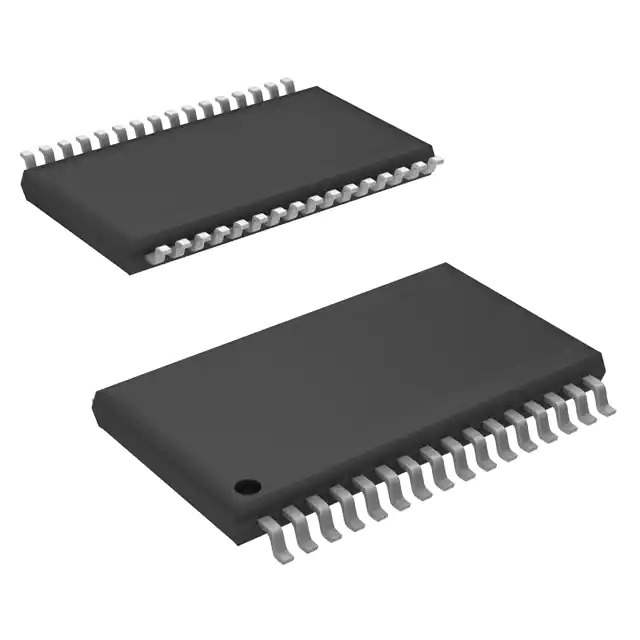

TLV1578CDA

Part No TLV1578CDA
Manufacturer Texas Instruments
Catalog Data Acquisition - Analog to Digital Converters (ADC)
Description IC ADC 10BIT SAR 32TSSOP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Data Acquisition - Analog to Digital Converters (ADC)
Mfr Texas Instruments
Package Tube
Product Status Active
Number of Bits 10
Sampling Rate (Per Second) 1.25M
Number of Inputs 8
Input Type Single Ended
Data Interface Parallel
Configuration MUX-ADC
Number of A/D Converters 1
Architecture SAR
Reference Type External
Voltage - Supply, Analog 2.7V ~ 5.5V
Voltage - Supply, Digital 2.7V ~ 5.5V
Features Selectable Address
Temperature Range - Operating 0°C ~ 70°C
Package / Case 32-TSSOP (0.240", 6.10mm Width)
Supplier Device Package 32-TSSOP
Mounting Type Surface Mount
Base Product Number TLV1578
Standard Package 46 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 936852-TLV1578CDA
Ultra Librarian 3D Model Ultra Librarian TLV1578CDA CAD Model

Description

Overview of Texas Instruments TLV1578CDA

The Texas Instruments TLV1578CDA is a high-performance, 8-channel, 10-bit analog-to-digital converter (ADC) that offers exceptional speed and accuracy for a wide range of applications. It is designed to meet the rigorous demands of both industrial and consumer markets, providing reliable and efficient data conversion at a competitive price point.

Key Features

  • High-Speed Performance: With a sampling rate of up to 1.25 MSPS (mega-samples per second), the TLV1578CDA ensures rapid data acquisition, making it ideal for applications that require real-time processing.
  • Multiple Input Channels: The device features 8 analog input channels, which allows for simultaneous sampling of multiple signals. This is particularly useful in systems that need to monitor various sensors or signals at once.
  • High Accuracy: The 10-bit resolution of the TLV1578CDA provides fine granularity, ensuring that the digital representation of the analog signal is precise and detailed.
  • Low Power Consumption: Designed with power efficiency in mind, the TLV1578CDA is suitable for battery-operated devices and other applications where power conservation is critical.
  • Flexible Interface: The device includes a parallel interface for easy integration with microcontrollers and digital signal processors (DSPs), facilitating straightforward communication and data transfer.

Applications

The TLV1578CDA is versatile and can be used in a variety of applications, such as:

  • Data acquisition systems
  • Medical instruments
  • Industrial control and automation
  • Multi-channel data logging
  • Telecommunications

Technical Specifications

  • Resolution: 10 bits
  • Number of Channels: 8
  • Max Sampling Rate: 1.25 MSPS
  • Interface Type: Parallel
  • Supply Voltage: 2.7V to 5.5V
  • Operating Temperature Range: -40°C to +85°C

In summary, the TLV1578CDA from Texas Instruments is a robust and efficient ADC solution that offers high-speed, multi-channel data conversion with low power consumption, suitable for a broad array of applications.
