The TLV320DAC3202BYZJR is a highly integrated, high-performance audio digital-to-analog converter (DAC) from the renowned manufacturer Texas Instruments. This compact, low-power component is designed to deliver exceptional sound quality for a wide range of audio applications, making it an ideal choice for designers seeking to enhance their audio systems.

Key Features

• High-Resolution Audio: With its advanced architecture, the TLV320DAC3202BYZJR supports high-resolution audio playback, ensuring crystal-clear sound in every application.
• Low Power Consumption: Designed for efficiency, this DAC operates on minimal power, making it perfect for portable and battery-powered devices.
• Compact Form Factor: The small footprint of the TLV320DAC3202BYZJR allows it to fit into tight spaces, offering flexibility in design for compact electronic devices.
• Integrated Headphone Amplifier: This DAC features an onboard headphone amplifier, providing a direct drive to headphones, simplifying the design and reducing the need for additional components.
• Programmable Digital Filters: Users can customize their audio experience thanks to the programmable digital filters included in the DAC, allowing for fine-tuning of audio output.
• Multiple Audio Data Interfaces: The device supports I²S, left-justified, right-justified, and DSP formats, offering versatility in interfacing with various audio sources and processors.

Applications

The TLV320DAC3202BYZJR is suitable for a multitude of applications, including but not limited to:

• Smartphones and Tablets
• Portable Media Players
• Home Audio Systems
• Automotive Audio Systems
• Professional Audio Equipment

Technical Specifications

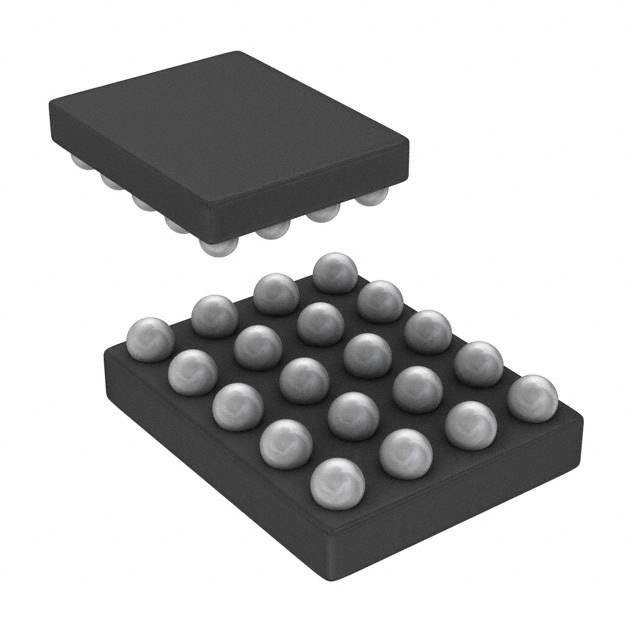

At the heart of the TLV320DAC3202BYZJR lies a sophisticated audio DAC capable of delivering a dynamic range of 100 dB and a signal-to-noise ratio (SNR) of 93 dB, ensuring high-fidelity audio reproduction. The device operates over a wide temperature range and comes in a compact 30-ball YZJ package, suitable for space-constrained designs.

With its combination of performance, power efficiency, and design flexibility, the TLV320DAC3202BYZJR from Texas Instruments stands out as a superior choice for any audio system developer looking to create products with outstanding sound quality.
