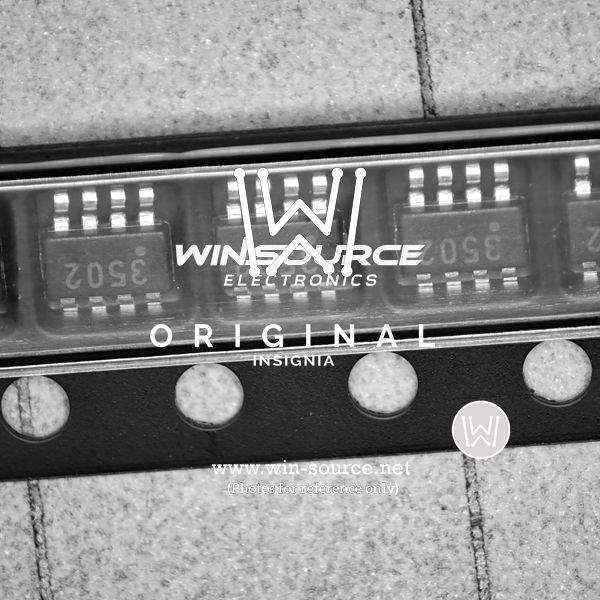

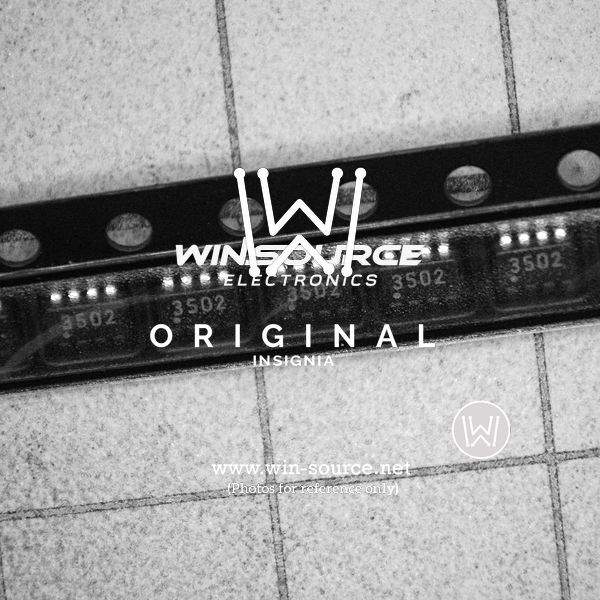

Product Overview: TLV3502AQDCNRQ1 from Texas Instruments

The TLV3502AQDCNRQ1 is a high-speed, dual-channel push-pull output comparator from Texas Instruments, specifically designed for automotive and industrial applications. This advanced comparator is characterized by its fast response time and low power consumption, making it an ideal choice for systems that require quick and reliable signal processing.

Key Features

• High Speed: The TLV3502AQDCNRQ1 boasts a remarkable response time with a 4.5 ns propagation delay, ensuring rapid signal comparison for time-critical applications.
• Low Power Consumption: Despite its high-speed capabilities, this comparator maintains low power consumption, which is crucial for energy-sensitive designs.
• Dual Channel: Equipped with two independent channels, it allows for simultaneous processing of different signals, increasing the efficiency of the system.
• Push-Pull Outputs: This feature provides a quick and robust response, eliminating the need for external pull-up resistors and simplifying the design.
• Wide Supply Range: The device operates over a wide supply range of 2.7V to 5.5V, accommodating various application requirements.
• Automotive Qualified: Meeting the AEC-Q100 standards, the TLV3502AQDCNRQ1 is suitable for automotive environments, where reliability and performance are paramount.

Applications

The TLV3502AQDCNRQ1 is versatile and can be used in a range of applications, including:

• Automotive systems such as engine control units, ABS, and gear shift sensors
• Industrial applications like motor control, overcurrent detection, and high-speed testing equipment
• Communication systems requiring high-speed signal processing
• Portable and battery-powered devices due to its low power profile

Quality and Reliability

Texas Instruments is committed to delivering high-quality products. The TLV3502AQDCNRQ1 is no exception, with its robust design and manufacturing processes that ensure reliability even under the stringent conditions typical in automotive and industrial settings.

In summary, the TLV3502AQDCNRQ1 offers an optimal blend of speed, power efficiency, and reliability, making it a go-to solution for designers looking to enhance the performance of their high-speed signal processing applications.
