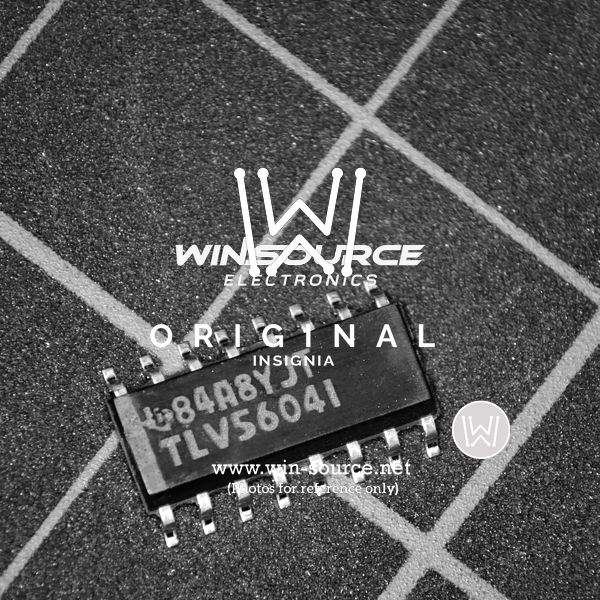

TLV5604ID: A High-Performance Digital-to-Analog Converter from Texas Instruments

The TLV5604ID is a precision 10-bit digital-to-analog converter (DAC) designed by Texas Instruments to meet the demanding needs of complex industrial, automotive, and communication systems. This DAC is part of TI's TLV series, known for their robust performance and reliability.

Key Features

• Resolution: The TLV5604ID boasts a 10-bit resolution, providing fine granularity for analog output.
• Quad Channels: It features four independent DAC channels, allowing for multiple signal outputs from a single device.
• Interface: The device includes a versatile 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration into a variety of system designs.
• Update Rate: It offers a high-speed data transfer rate, making it suitable for applications requiring rapid signal adjustments.
• Voltage Supply: The TLV5604ID operates on a 2.7-V to 5.5-V power supply, accommodating a range of power environments.
• Power-On Reset: The device includes a power-on reset circuit that ensures the DAC output powers up at zero scale and remains there until a valid write to the device takes place.
• Package: Encased in a 14-pin SOIC package, the TLV5604ID is designed for compact PCB layouts.

Applications

The TLV5604ID is well-suited for a variety of applications that require high-accuracy digital-to-analog conversion, including:

• Process Control Systems
• Data Acquisition Systems
• Automotive Systems
• Portable Instrumentation
• Programmable Attenuators

Reliability and Support

As with all Texas Instruments products, the TLV5604ID is built to the highest quality standards and is backed by TI's comprehensive technical support and reliability data. With its advanced features and robust design, the TLV5604ID is an excellent choice for designers looking to implement a reliable digital-to-analog conversion solution in their next project.
