TLV62130RGTT Step-Down Converter by Texas Instruments

The TLV62130RGTT is a highly efficient synchronous step-down converter from Texas Instruments, designed for use in various applications that require a compact, high-performance power solution. This device is part of the EasySwitcher™ converter family and is known for its exceptional power density and ease of use.

Key Features:

• Input Voltage Range: The TLV62130RGTT operates with an input voltage range of 3V to 17V, making it versatile for a wide range of supply sources.
• Output Current: It can provide up to 3A of continuous output current, catering to the needs of power-intensive applications.
• High Efficiency: With an efficiency of up to 95%, this converter ensures minimal power loss and helps in maintaining thermal performance.
• Adjustable Output Voltage: The output voltage is adjustable from 0.9V to 6V, allowing for a high degree of flexibility to meet the requirements of various circuits.
• Frequency Synchronization: It features frequency synchronization to an external clock, which can reduce electromagnetic interference (EMI) in sensitive applications.
• Power Save Mode: The device includes a power save mode for light load efficiency, ensuring energy conservation in low-power conditions.

Applications:

The TLV62130RGTT is suitable for a broad spectrum of applications, including:

• Portable and battery-powered equipment
• Embedded computing systems
• Networking and telecommunication devices
• Industrial and automotive electronics

Package and Reliability:

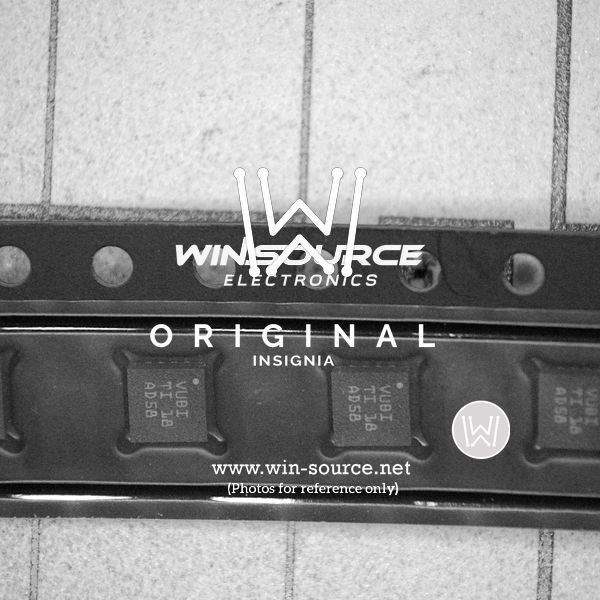

Encased in a 16-pin QFN package, the TLV62130RGTT offers a compact footprint that is ideal for space-constrained applications. It also features thermal shutdown and overcurrent protection, which contribute to the reliability and longevity of the device.

Design Support:

Texas Instruments provides extensive design support for the TLV62130RGTT, including evaluation modules, simulation models, and a comprehensive technical documentation suite to assist designers in integrating this converter into their projects efficiently and effectively.
